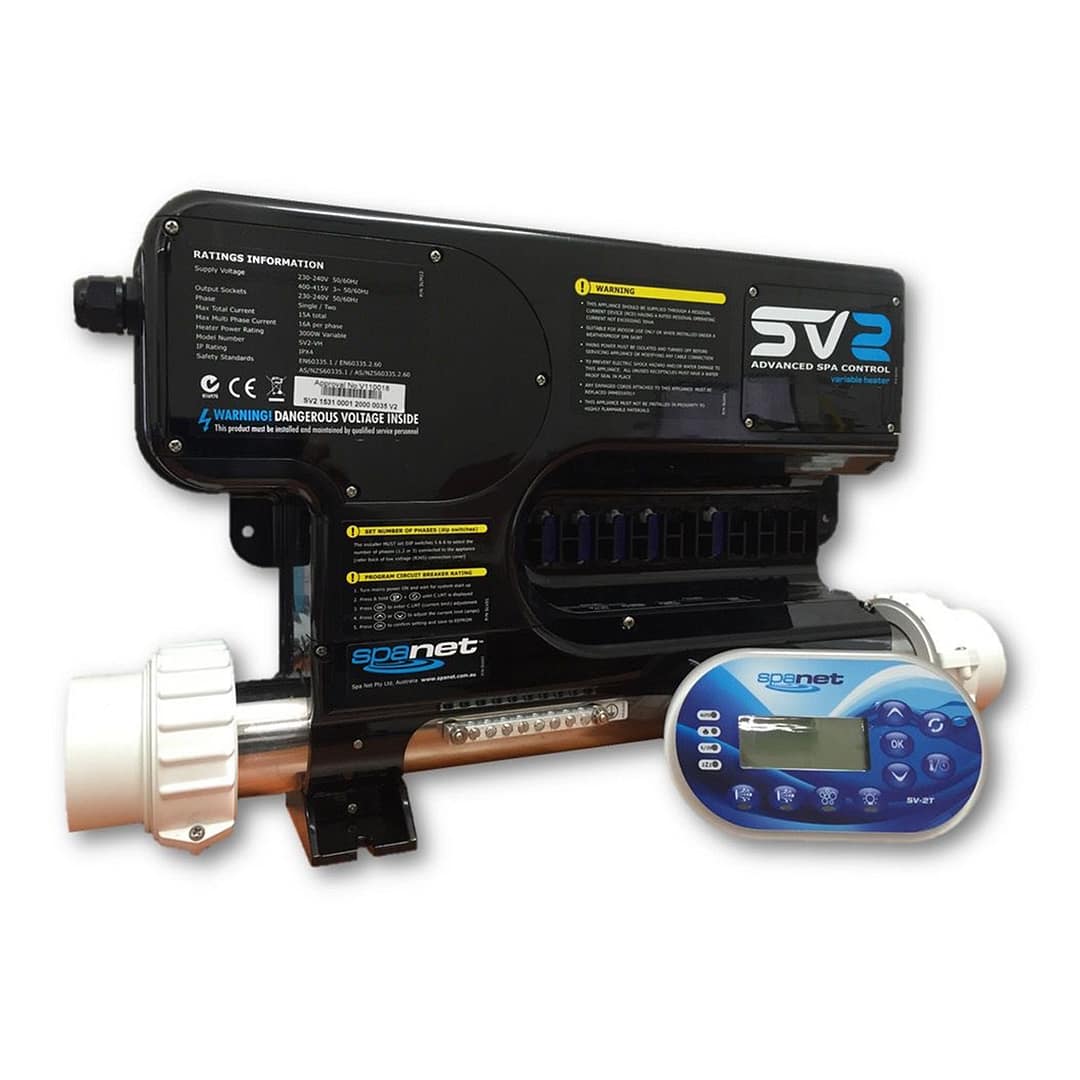

Spanet SV2 Variable Heat Controller Complete With Touchpad
SKU : SN-SV2-VH-PKG
In stock
Description
Spanet SV2 VH Controller Package.
Comes complete with controller and touchpad.
SV2 230volt Output Sockets
CIRC PUMP: Circulation pump (1-24hr)
PUMP 1: 1Spd Pump or 2Spd Pump
BLOWER: Blower
230V: This outlet has a constant 230volts and is not switchable (can be used to power a heat pump or any other item requiring a constant 230volts)
O3/UV: This outlet is only to be used with an ozone system
SV2 Low Voltage
1 x Touchpad Outlet
1 x Light(Spanet SV Light Only)
1 x Heat Pump Port
1 x Wifi Port
1 x Hi-Pool Temp Sensor
SV2 Features
*In heater temp sensor
*Max Temp 41 degrees
*Adjustable Filtration
*Sleep Timer
*Heat Pump Interface
*Wifi Interface
*Programmable Load Shedding
Specifications
Controller Specifications.
Heater Wattage: 3000w
Max Current: 20amp
Power Lead: 15amp C-38
Power Lead Length: 3m
Heater Unions: 50mm
Controller Dimensions.
Length: 544mm
Height: 309mm
Width: 90mm
Weight: 5.3kg
Touchpad Dimensions.
Face Size –
Length: 165mm
Width: 94mm
Depth: 30mm
Hole Size –
Length: 145mm
Width: 74mm
Touchpad Lead Length: 2.3m
Warranty:
Comes with a 2 year warranty(1 year replacement and 1 year parts only).
*Refer to manufacturers T&C’s.
