Madimack Elite Max 120.0kw Top Discharge Heat Pump – Three Phase

SKU : MM-ELITE120

Fast Delivery Australia Wide

24-48hr dispatching on in stock items

All Electrical Work Must Be Completed By A Qualified Electrician

Description

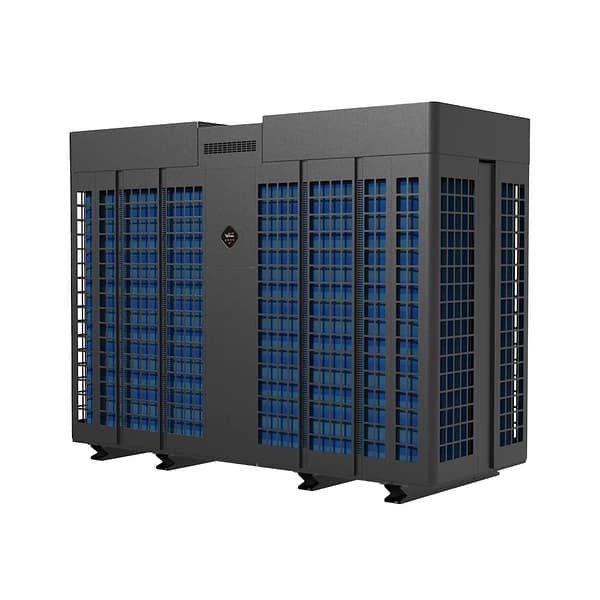

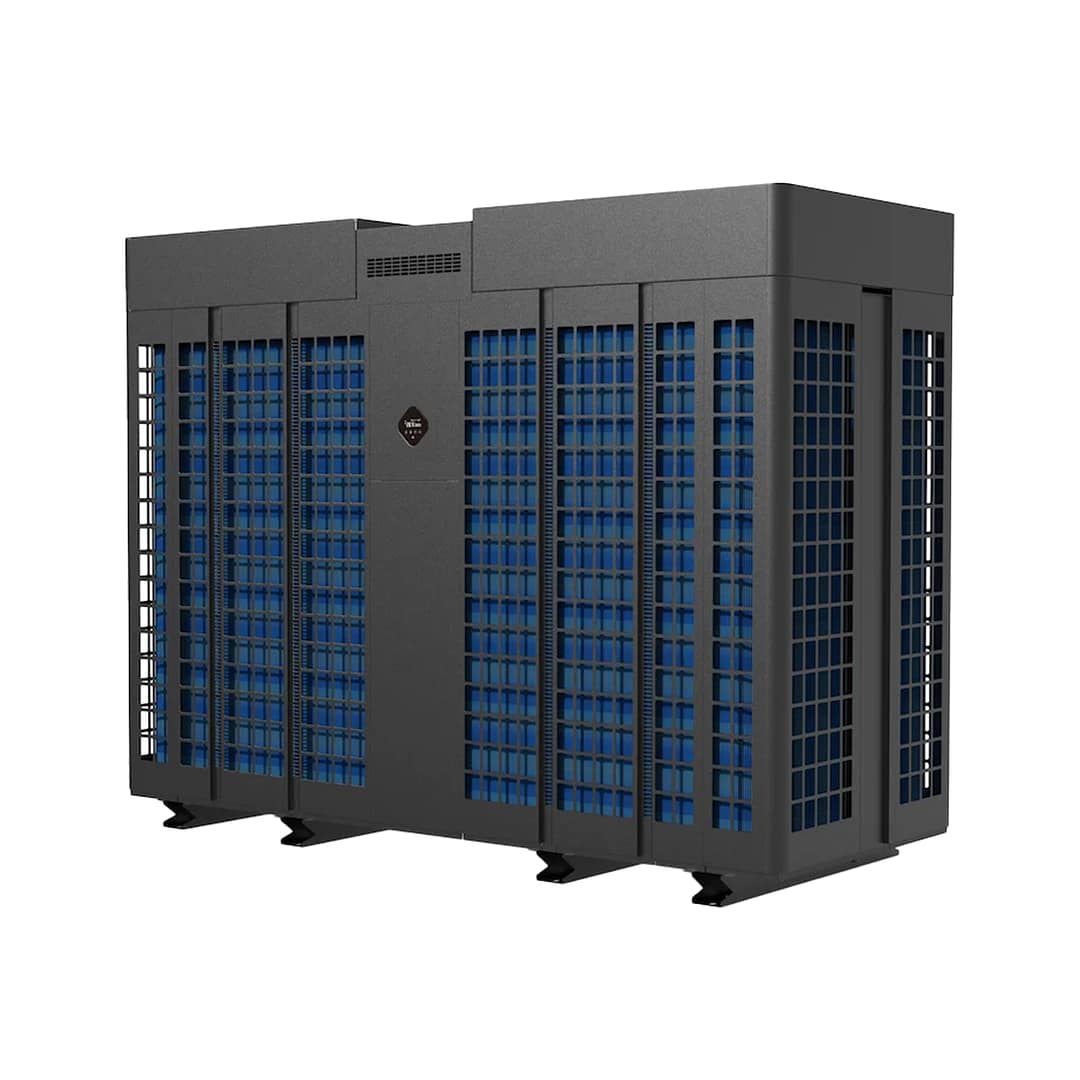

Madimack Elite Max 120.0kw Top Discharge Heat Pump – Three Phase

These powerful Commercial Pool Heaters have the capacity to cope with the demands of any aquatic facility. Built with cutting edge technology and climate adaptive features, the Madimack’s commercial heat pump keeps up all year round whilst reducing energy bills significantly.

Ideal For: Schools, Resorts, Wellness Centres, Hotels and Public Pools.

Key Features

Bespoke system designs
Energy modelling
Full HVAC system
Heat recovery
Dehumidification
Ventilation controls
Integrated energy systems
Servicing and maintenance
Portable hot water generation
Smart controls

Please consult with a commercial pump specialist to ensure the correct pump is selected for this installation.

Brochures/Downloads

Specifications

Heat Pump Specifications
Wattage (Heating Capacity): 120kw
Power Supply: 400V 3ph
Maximum Input Current : 38A (Per Phase)
Union Size: 80mm
Recommended Water Flow: 800lpm
IP Rating: IPX4

Heat Pump Dimensions
Length: 2160mm
Width: 1170mm
Height: 1330mm
Weight: 448kg

Warranty
25 Years (Heat Exchanger)
5 Years (Compressor)
2 Years (Parts)
1 Year (On-Site)
