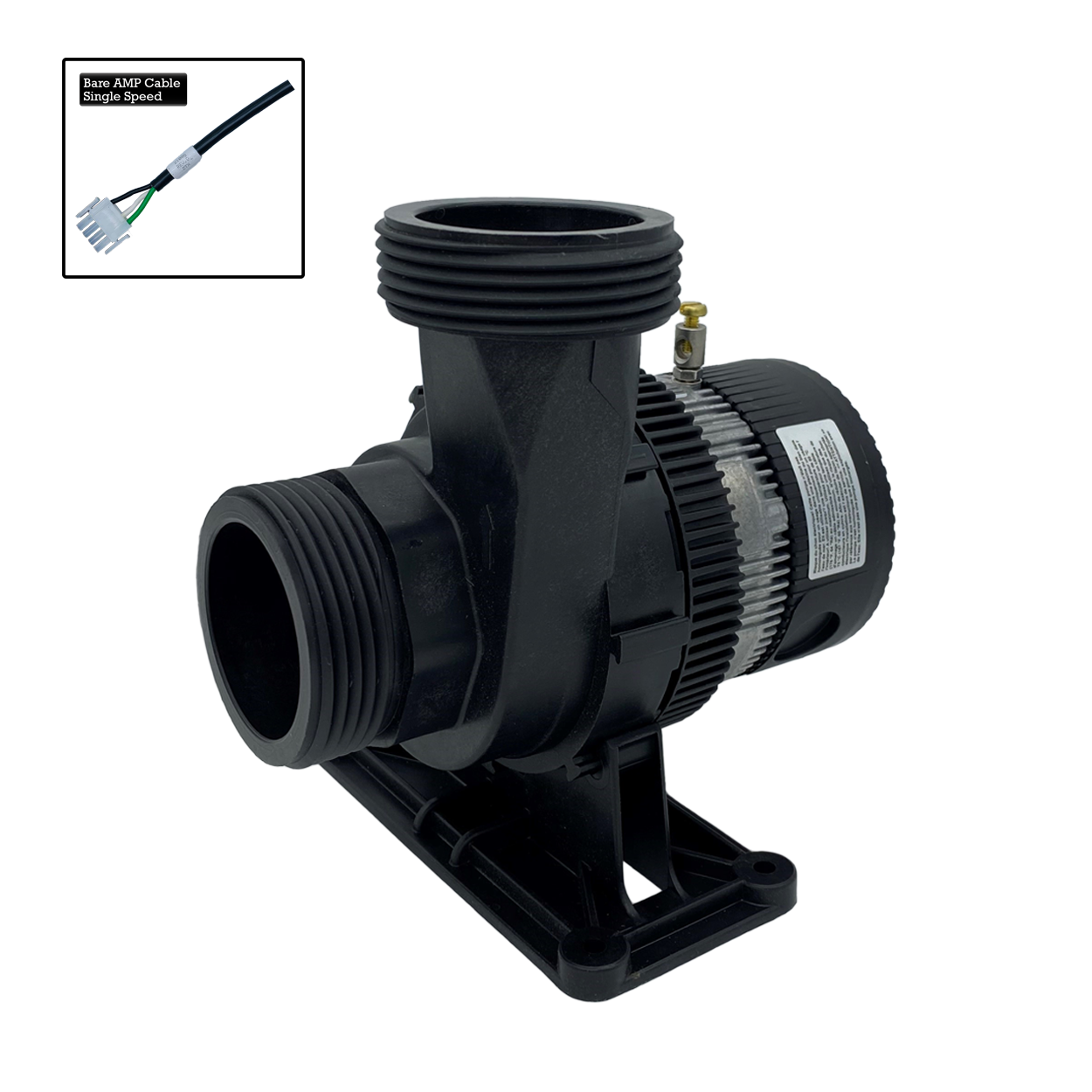

Laing E-14 Circulation Pump

Xylem (formerly ITT Laing Thermotech) E – 14 electronically commutated canned spherical motor centrifugal spa circulation pump
High flow circulation pump designed for flow through heater applications.
Can be used in place of Aquaflo CMCP Circ Master pumps and many other high flow circ pumps, LX JA35, LX JA50 used in local and Chinese imported spas
Other applications include use with ozone generators on swimspas and swimming pools, or any other installation requiring low power consuming constant flow.
130 lpm flow maximum, 3m head maximum 1.5″ threaded unionised connections (same thread as Aquaflo and LX pumps)
230v, 0.5A, 115w, 50/60Hz, 2100 rpm, less than 50 db noise level
AMP Balboa style plug/cord fitted standard, other cords at additional cost.
Please download the manual below for important installation instructions
The pump must be installed perfectly horizontally or vertically with wet end facing up. 12 month manufacturing defect warranty when used with fresh water spa applications only.
