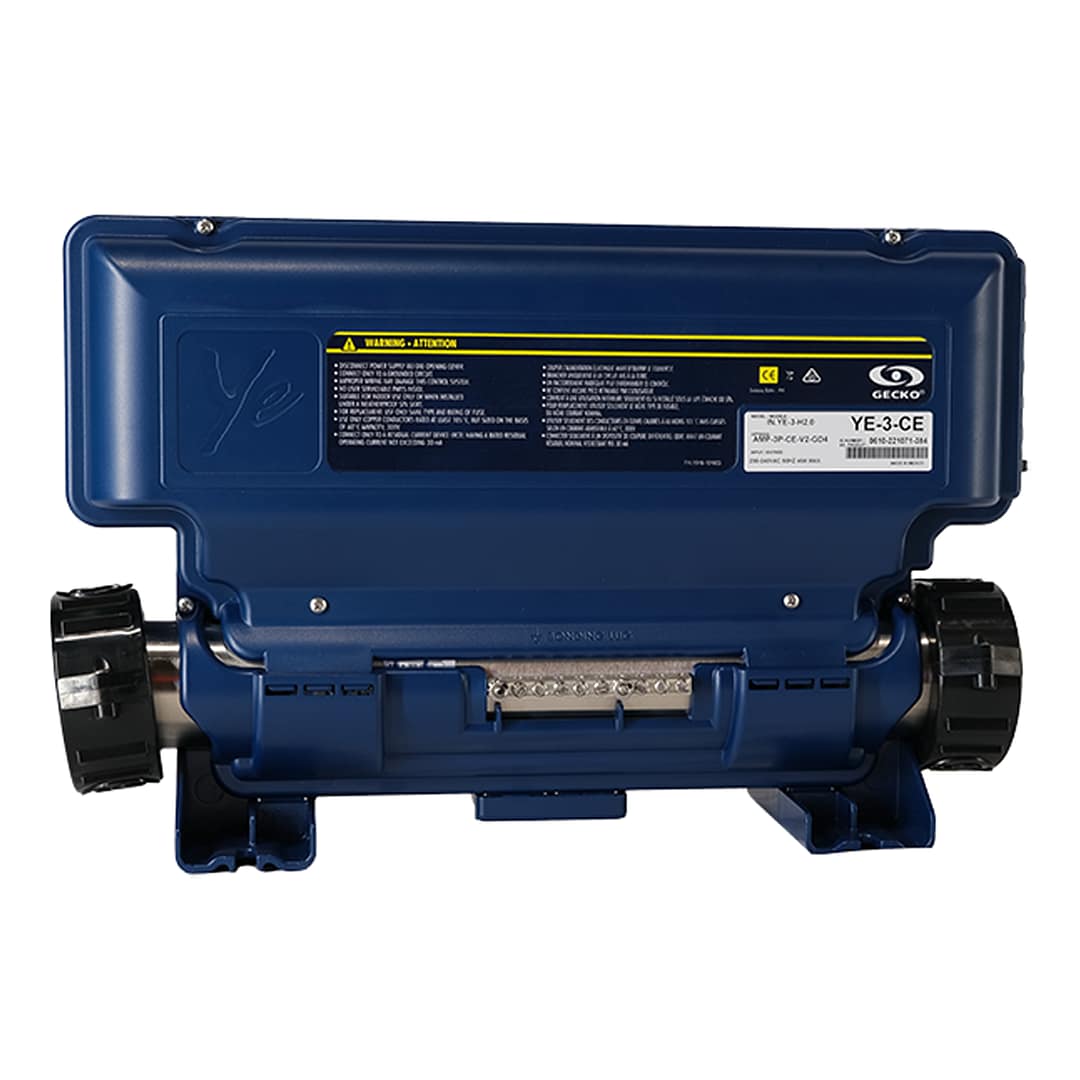

Gecko Aeware IN.YE-3 4.0kw Controller
SKU : G-0610-221028
Description
Gecko Aeware IN.YE-3 4kw Controller Only
Touchpad sold separately
IN.YE-3 240volt Output Sockets
CIRC PUMP: Circulation Pump
PUMP 1: 1Spd Pump or 2Spd Pump
PUMP 2: 1Spd Pump
PUMP 3: 1Spd Pump
BLOWER: Blower
O3: This outlet is only to be used with an ozone system
IN.YE-3 Low Voltage
1 x Touchpad Outlet
1 x Light
2 x Comunication Links (AUX touchpad/In.Touch)
IN.YE-3 Features
*In heater temp sensor
*Max Temp 40 degrees
*Adjustable Filtration
*Heat Pump Interface
*Wifi Interface
Specifications
Controller Specifications
Heater Wattage: 4000w
Max Current: 48amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions
Length: 498mm
Height: 273mm
Width: 115mm
Weight: 3.5kg
Warranty:
Comes with a 1 year warranty(Return to base)
*Refer to manufacturers T&C’s.
