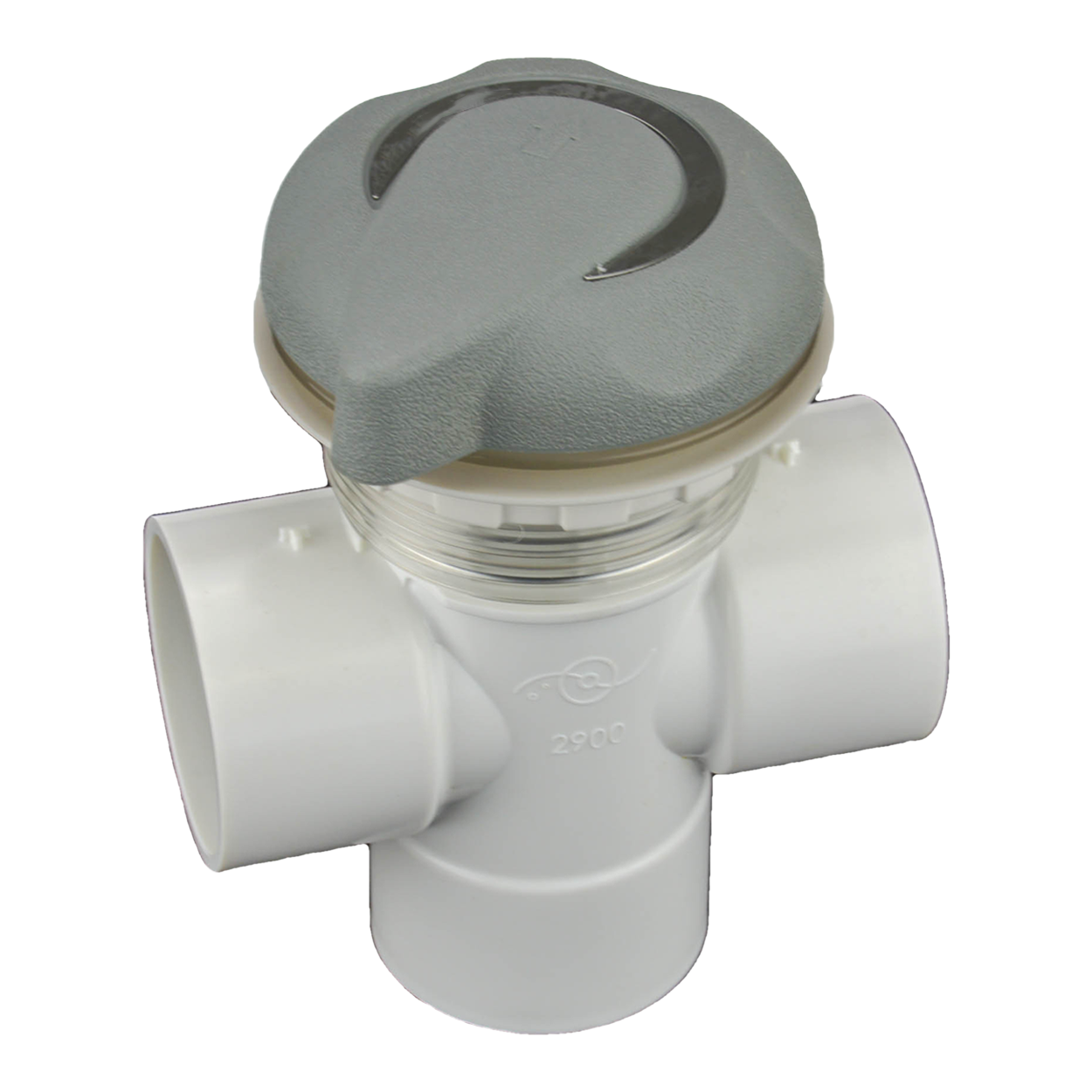

Edgetec 2″ Diverter Valve Stainless Steel
SKU : E-2900-SS
Description
Edgetec 2″ Diverter Valve Stainless Steel
Comes complete with Body, Flange, Locking Ring, Diverter Gate and O’ring’s, Cap and O’ring, and Handle.
Commonly used on Maxx Spas.
Specifications
Dimensions
Required Hole Size – 80mm
Diverter Body –
Height: 180mm
Diameter: 72mm
Ports/Outlets: 3 x 50mm(2″) Water
Diverter Gate –
Height: 140mm
Shaft Top: 30mm sprocket top
Cap Diameter –
Warranty
3 months for manufacturing or material defects only
*Refer to manufacturers T&C’s
