DAVEY SPA-QUIP SP1200 6.0KW CONTROLLER AND OVAL TOUCHPAD
SKU : Q1200-60
In stock
Description

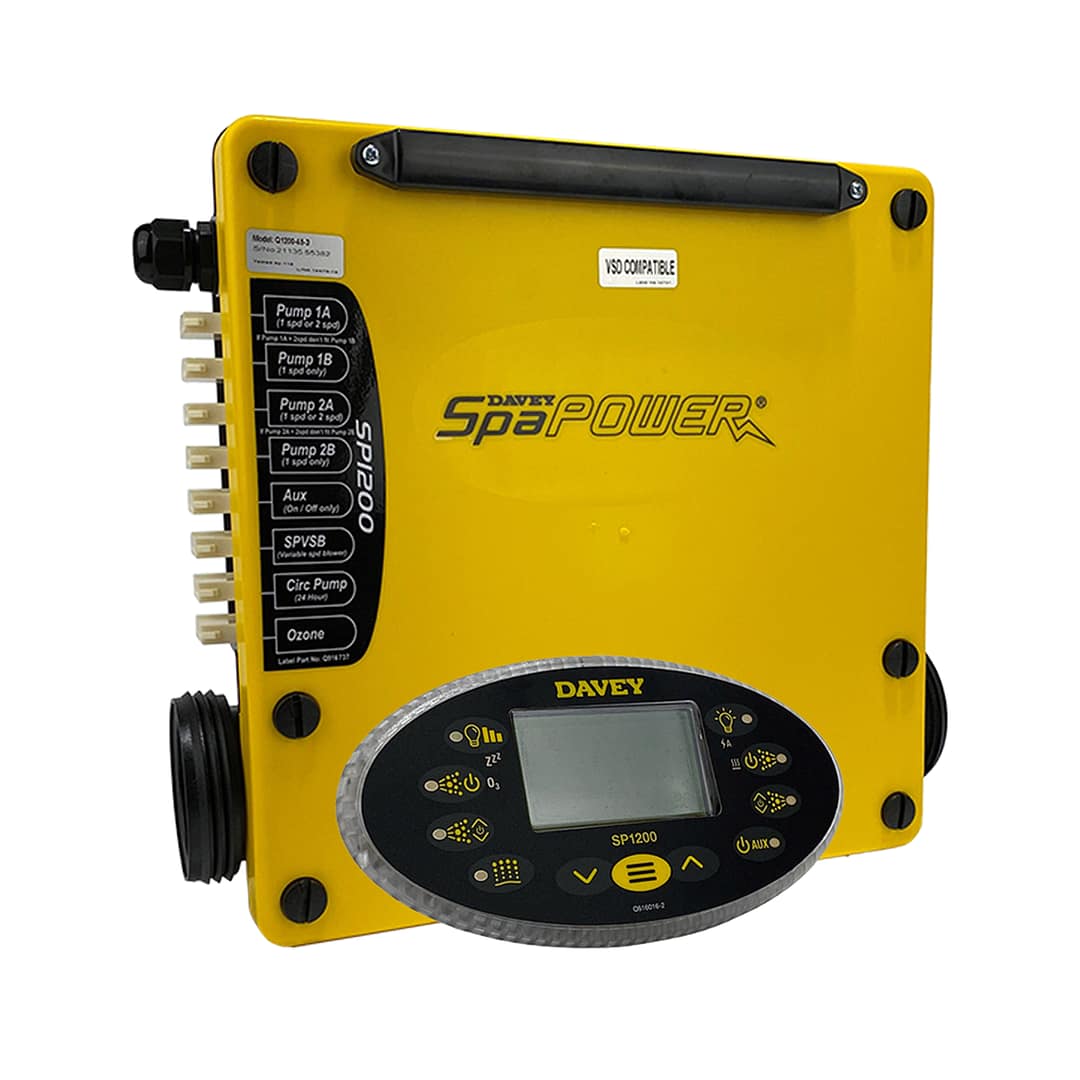

Davey SP1200-60 Controller.
Comes complete with controller and touchpad.
SP1200-60 230volt Output Sockets
PUMP 1A: 1Spd Pump or 2Spd Pump
PUMP 1B: 1Spd Pump (Cannot use if pump 1A is 2Spd)
PUMP 2A: 1Spd Pump or 2Spd Pump
PUMP 2B: 1Spd Pump (Cannot use if pump 2A is 2Spd)
AUX: 1Spd pump or single speed blower
SPVSB: Davey Variable Speed Blower only
Circ Pump: Circulation pump (24hr)
Ozone: This outlet is only to be used with an ozone system
SP1200-60 Low Voltage
2 x Touchpad Outlet
4 x Light (Davey lights only)
1x 12v AC light output
1 x Variable Speed Blower Outlet
1 x In Pool Temp Sensor
SP1200-60 Features
*In heater temp sensor
*Max Temp 41 degrees
*Adjustable Filtration
*Sleep Timer
*Programmable Load Shedding
Specifications
Controller Specifications.
Heater Wattage: 6000w
Max Current: 40amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions
Length: 310mm
Height: 360mm
Width: 95mm
Weight: 4.2kg
Touchpad Dimensions.
Face Size -.
Length: 172mm
Width: 91mm
Depth: 5mm
Hole Size –
Length: 135mm
Width: 65mm
Touchpad Lead Length: 3m
Warranty:
Comes with a 2 year warranty
*Refer to manufacturers T&C’s.
