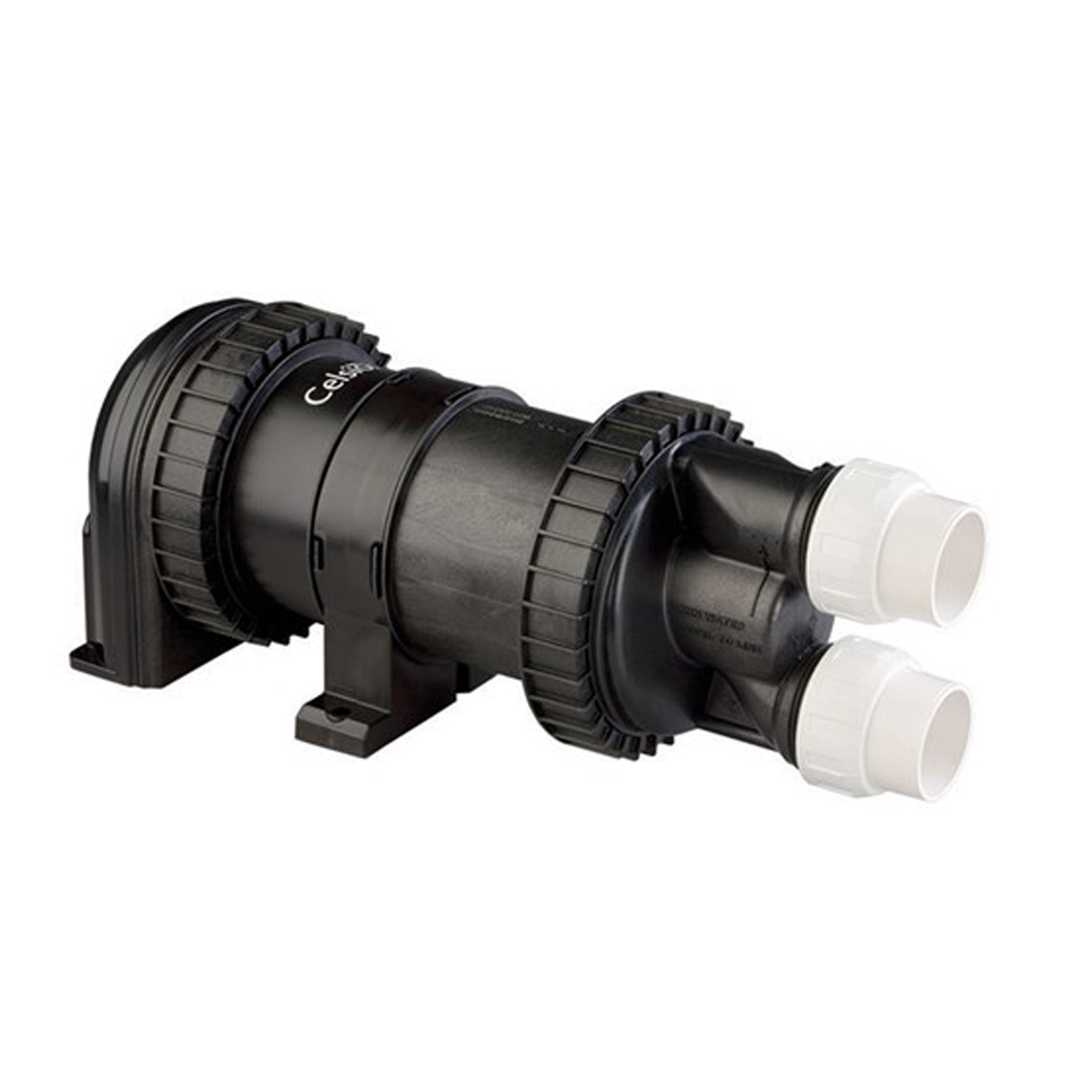

Davey Celsior Spa Bath Pump 1.25hp Touchpad Boost.

Part No. D-C270TB

Suited to installations containing 6-8 jets. Patented ‘heat maintenance technology’ uses motor heat to assist in maintaining water temperature.

This model also has ‘boost heat’ supplied by a 1000W heater element.

This unit is operated by an electronic touchpad (Touchpad sold separately, part no. D-TBCS).

Comes with 40mm unions and lead with C38 plug.

Electrical Specifications

Speed: Single
Voltage: 220-240V
Start Current: 12.2A
Run Current: 3.9A
Heater Current: 4.2A
Total Unit Current: 8.1A
Motor Input Power: 930W
Motor Output Power: 623W
Heater Input: 1000W

Dimensions

Length: 450mm
Width: 165mm
Height: 175mm
Weight: 7.7kg

Operating Limits

Max Water Temp: 40°
Max Ambient Temp: 40°
Noise Level: 60db

This pump retro fits the Davey XS Spa Bath range.

Also available in 1hp (Part No. C200TB) and 2hp (Part No. C400TB)
