Balboa VL260 Touchpad and Overlay (B,J,T,L)
SKU : B-53645
Description

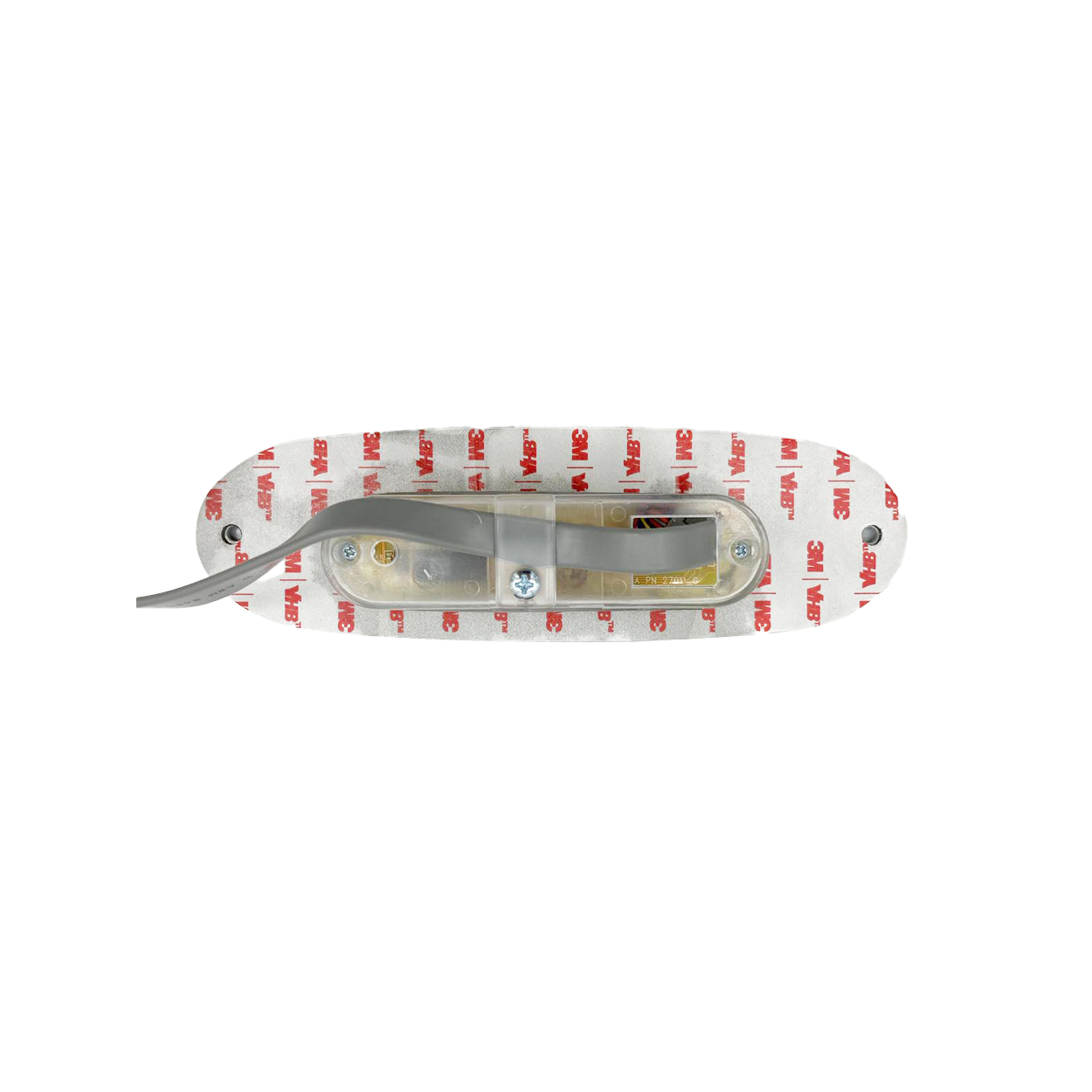

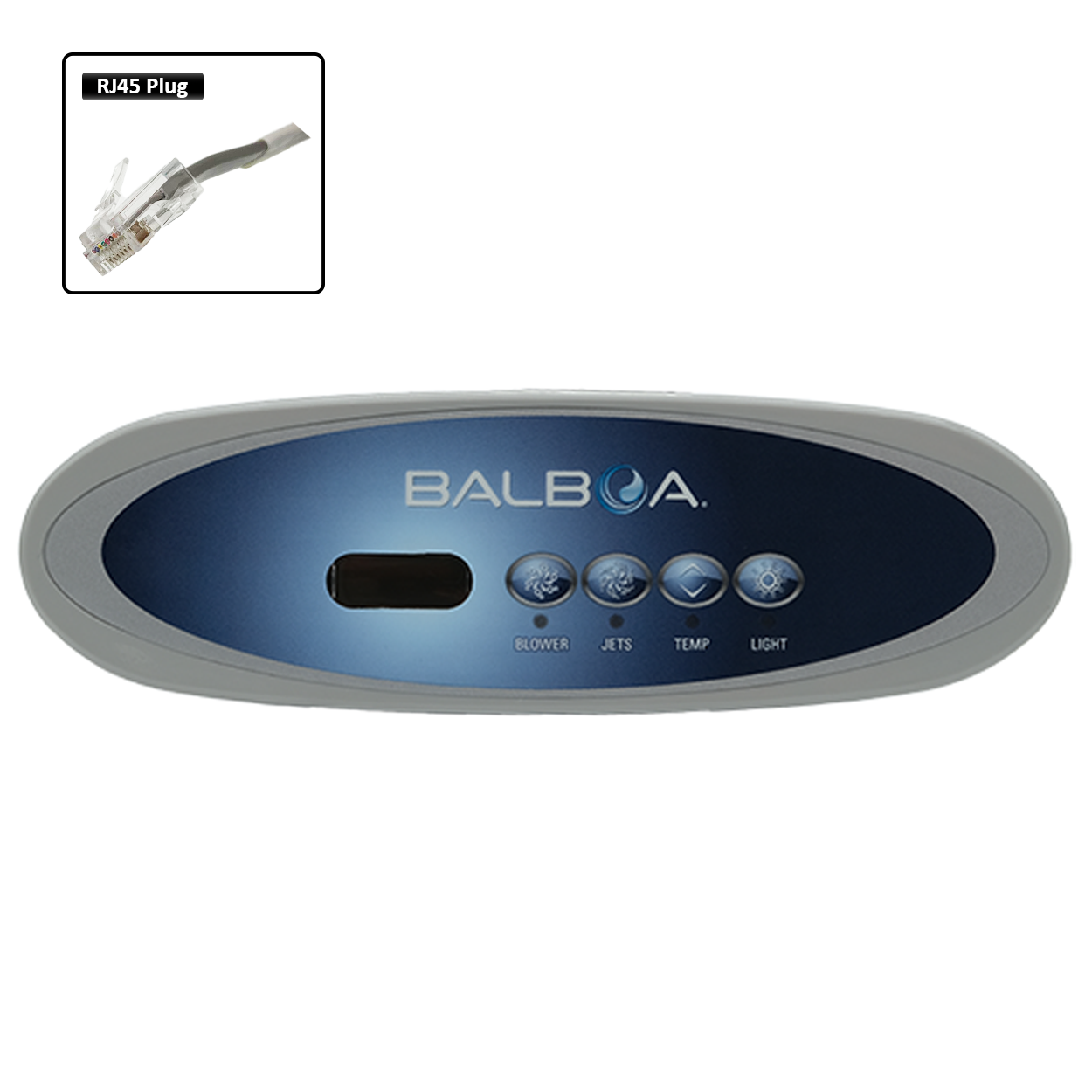

Balboa VL260 Touchpad and Overlay (B,J,T,L)
Compatible with VS/GS Systems. Consult the tech sheet of a specific VS/GS system to ensure correct functionality of this touchpad.

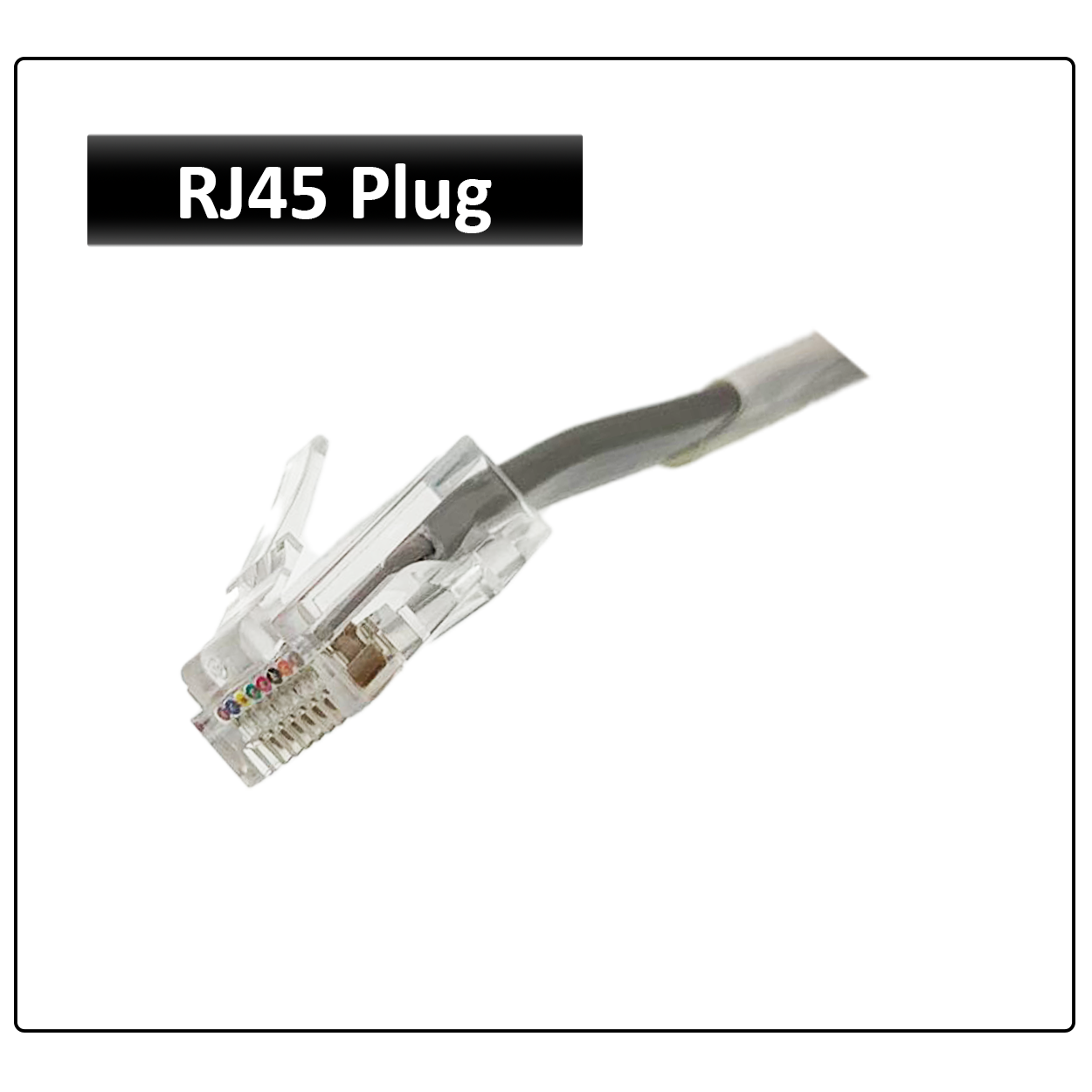

Comes with RJ45 plug
Commonly used on spas with GS500, GS500Z, GS501 and other controllers.
Also commonly found on Chinese imported spas.
For user guide and cut-out template:
https://www.balboawatergroup.com/Topside-Panels
Specifications
Touchpad Dimensions
Face Size –
Length: 178mm
Width: 53mm
Depth: 30mm
Hole Size –
**Requires a 1” hole saw, Refer to cut-out template.
Touchpad Lead Length: 3m
Warranty:
*Refer to manufacturers T&C’s.
