Balboa TP700 Touchpad and Overlay (2 Jets)
SKU : B-57279
In stock
Description

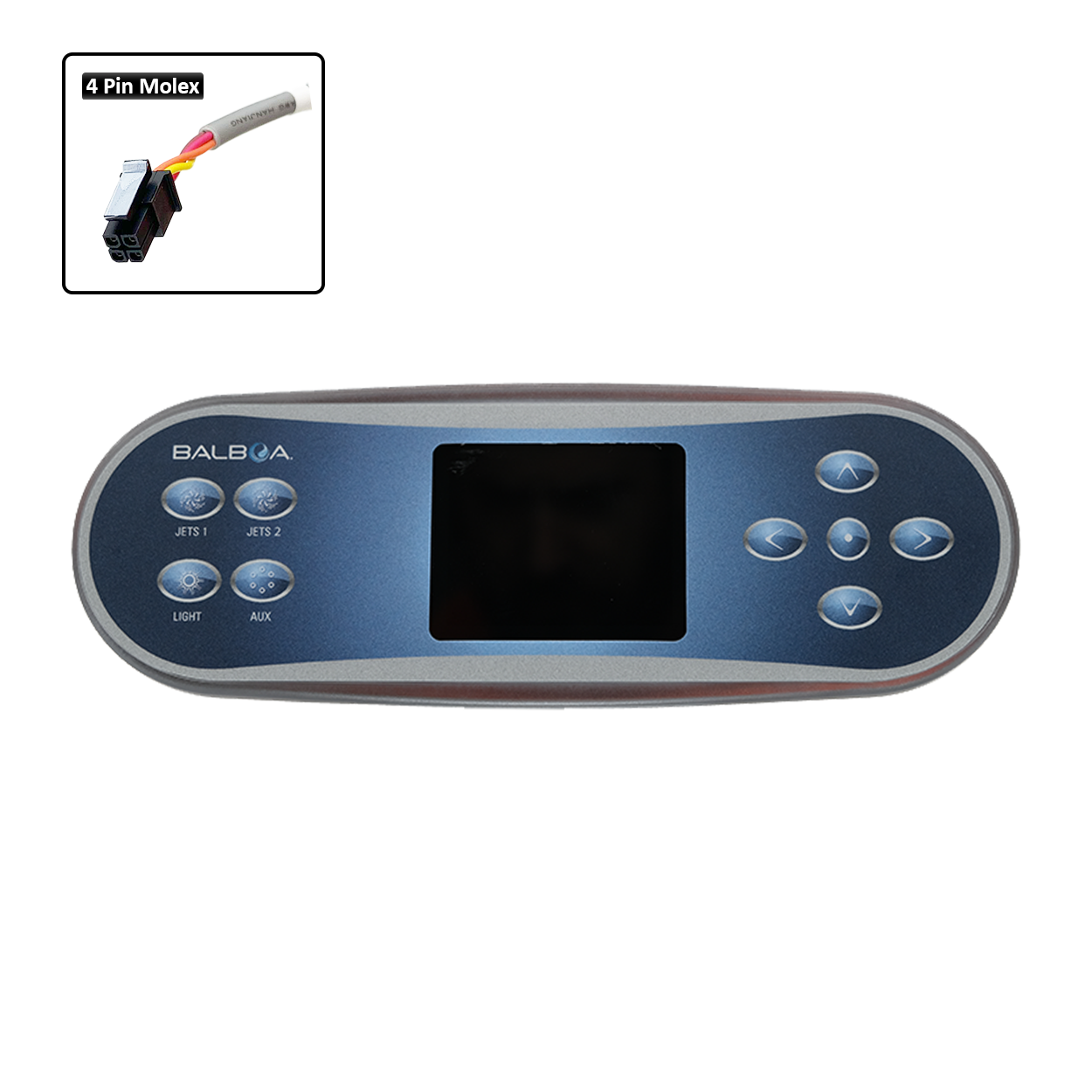

Balboa TP700 Touchpad and Overlay (2 Jets)
Compatible with BP systems. Consult the tech sheet of a specific BP system to ensure correct functionality of this touchpad.
Supports the advanced functions of BP controls that use Balboa’s patented M7 temperature and flow sensor technology.

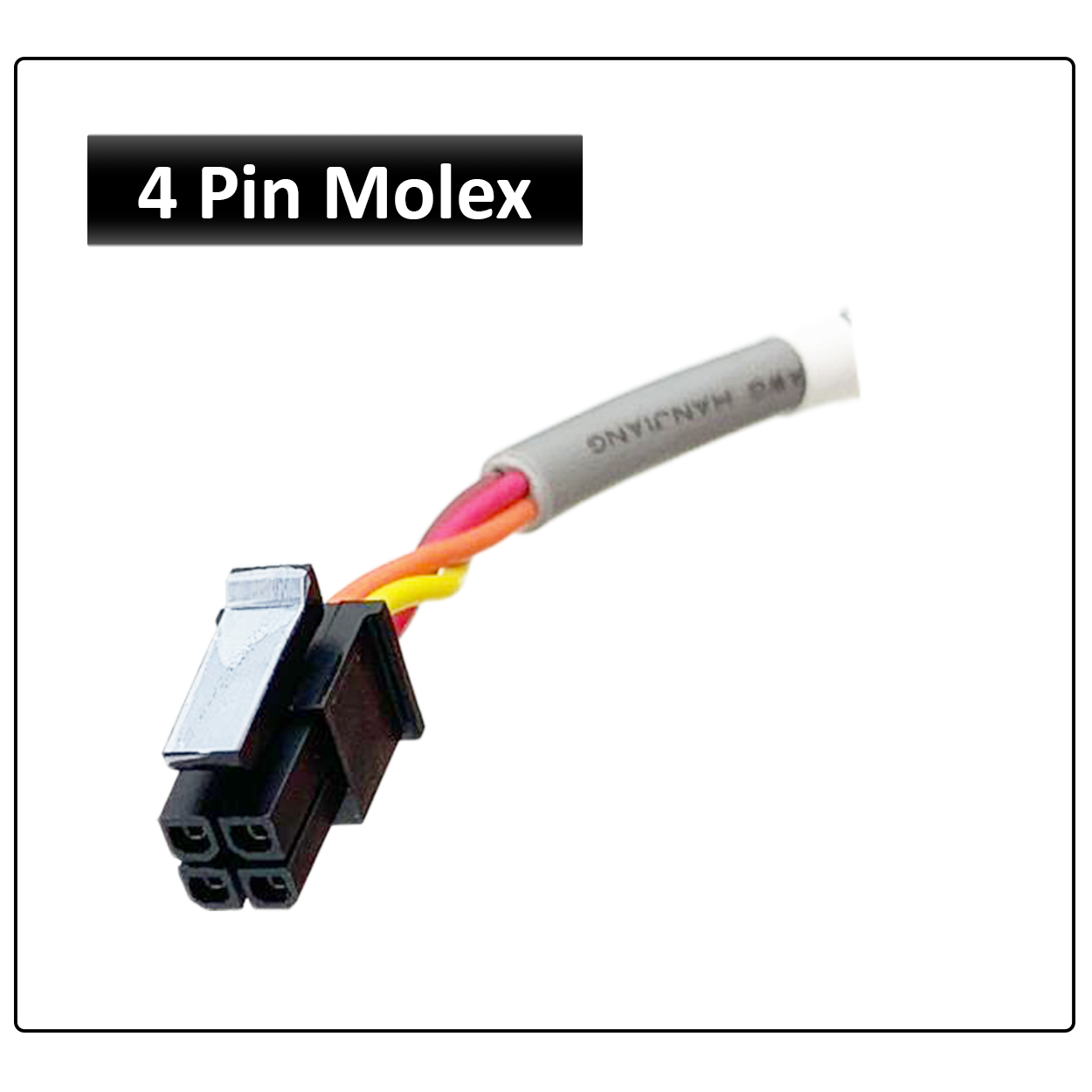

Comes with 4 pin Molex connector.
For user guide and cut-out template:
https://www.balboawatergroup.com/Topside-Panels
Specifications
Touchpad Dimensions
Face Size –
Length: 254mm
Width: 89mm
Depth: 20mm
Hole Size –
*Requires 2.5” Hole Saw, see cut-out template.
Touchpad Lead Length: 3.0m
Warranty:
*Refer to manufacturers T&C’s.
