Balboa SpaTouch2 Square Icon Touchscreen Touchpad
SKU : B-57320
In stock
Description

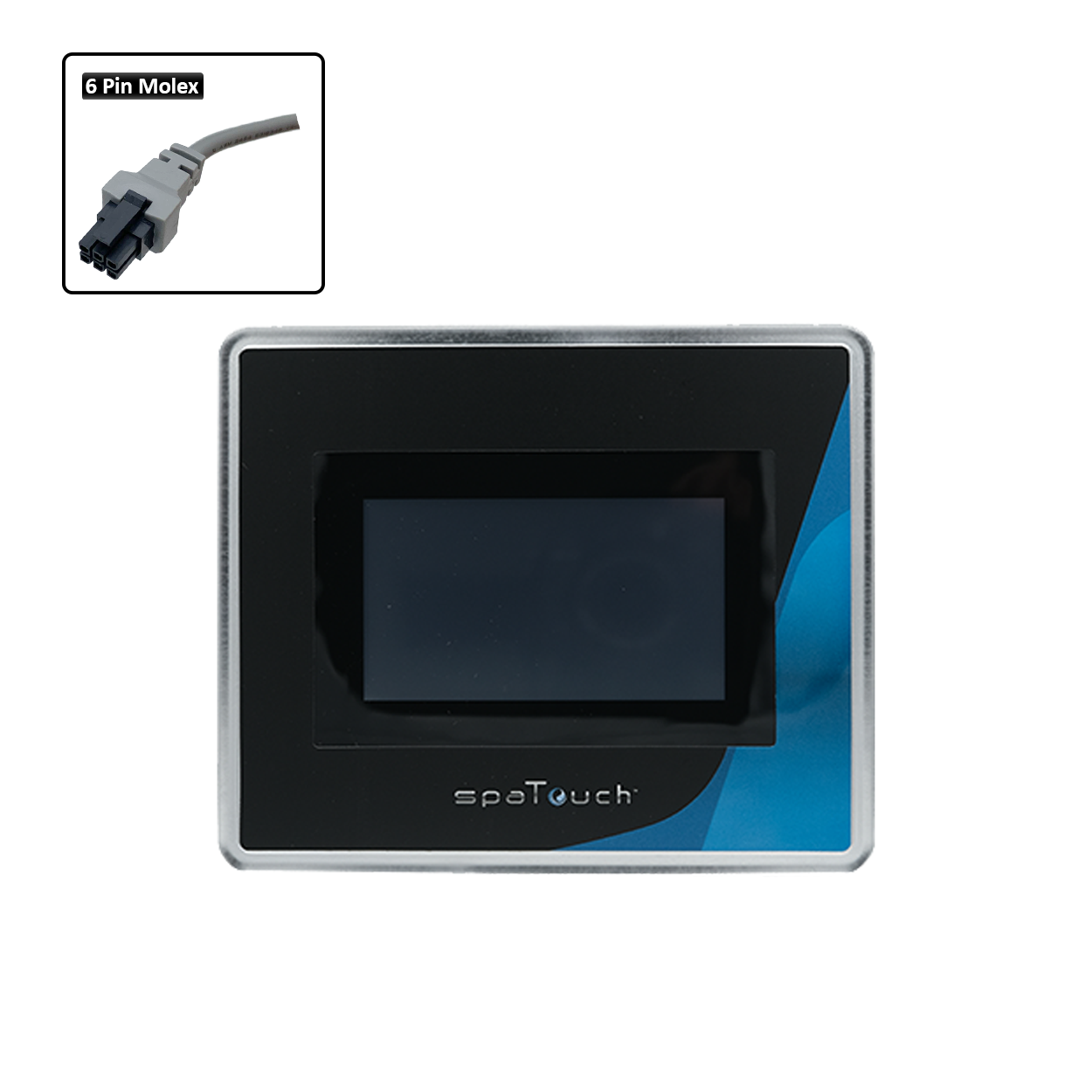

Balboa SpaTouch2 Square Icon Touchscreen Touchpad
Compatible with all BP controllers.

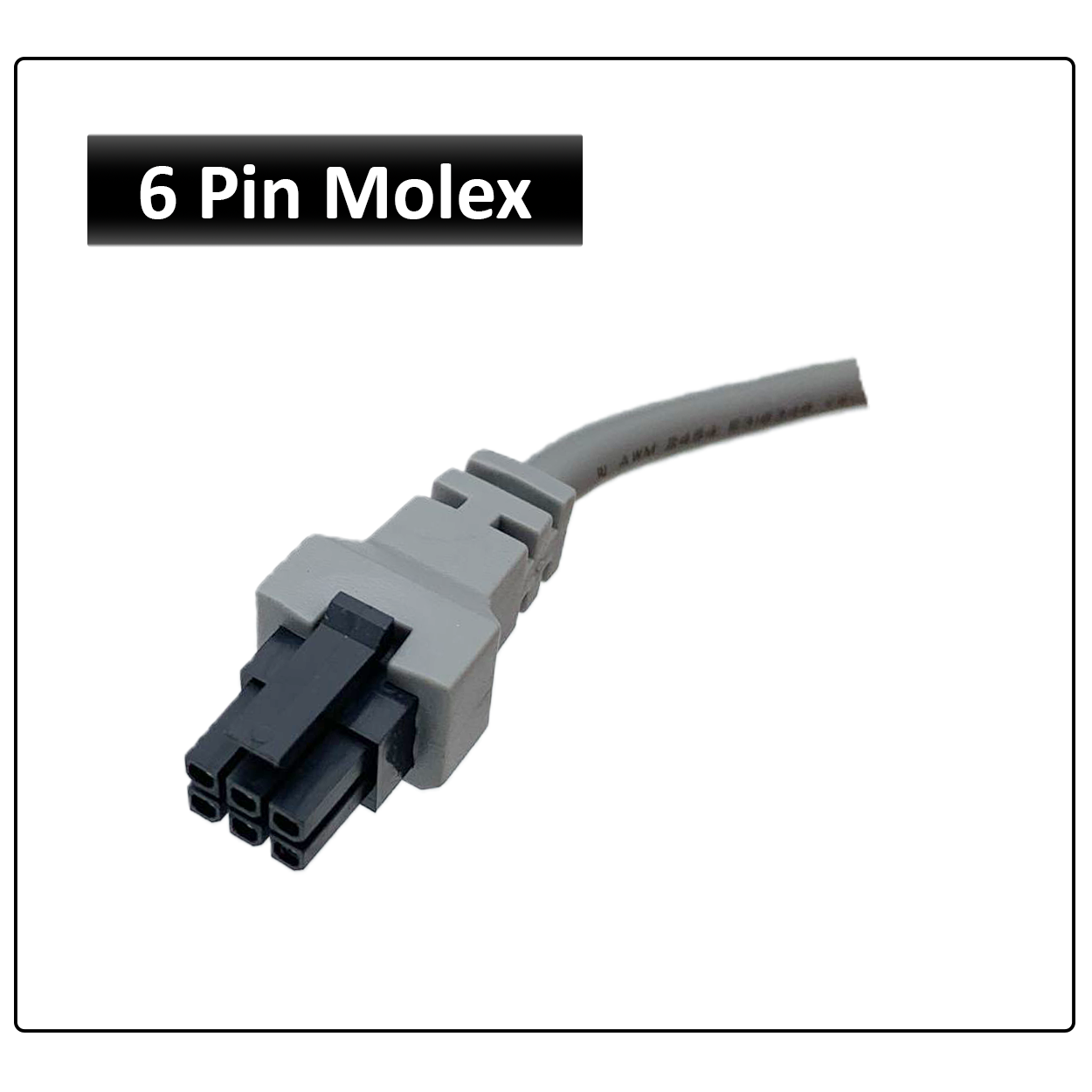

Comes with colour display and 6 pin Molex plug with 6 to 4 pin Molex plug adaptor provided.
For user guide and cut-out template:
https://www.balboawatergroup.com/Topside-Panels
Previous model numbers were B-52777-01, B-52777 and 52777
Specifications
Touchpad Dimensions
Face Size –
Length: 173mm
Width: 145mm
Depth: 20mm
Hole Size –
Length: 147mm
Width: 94mm
Touchpad Lead Length: 3.0m
Warranty:
*Refer to manufacturers T&C’s.
Support & Downloads
Please click the support button to find products, software, manuals, knowledge articles, how-to-videos, error codes and more at our support hub.
