Balboa / Hydroair Diverter Valve 50mm Grey
SKU : B-11-4000GRY
In stock
Description

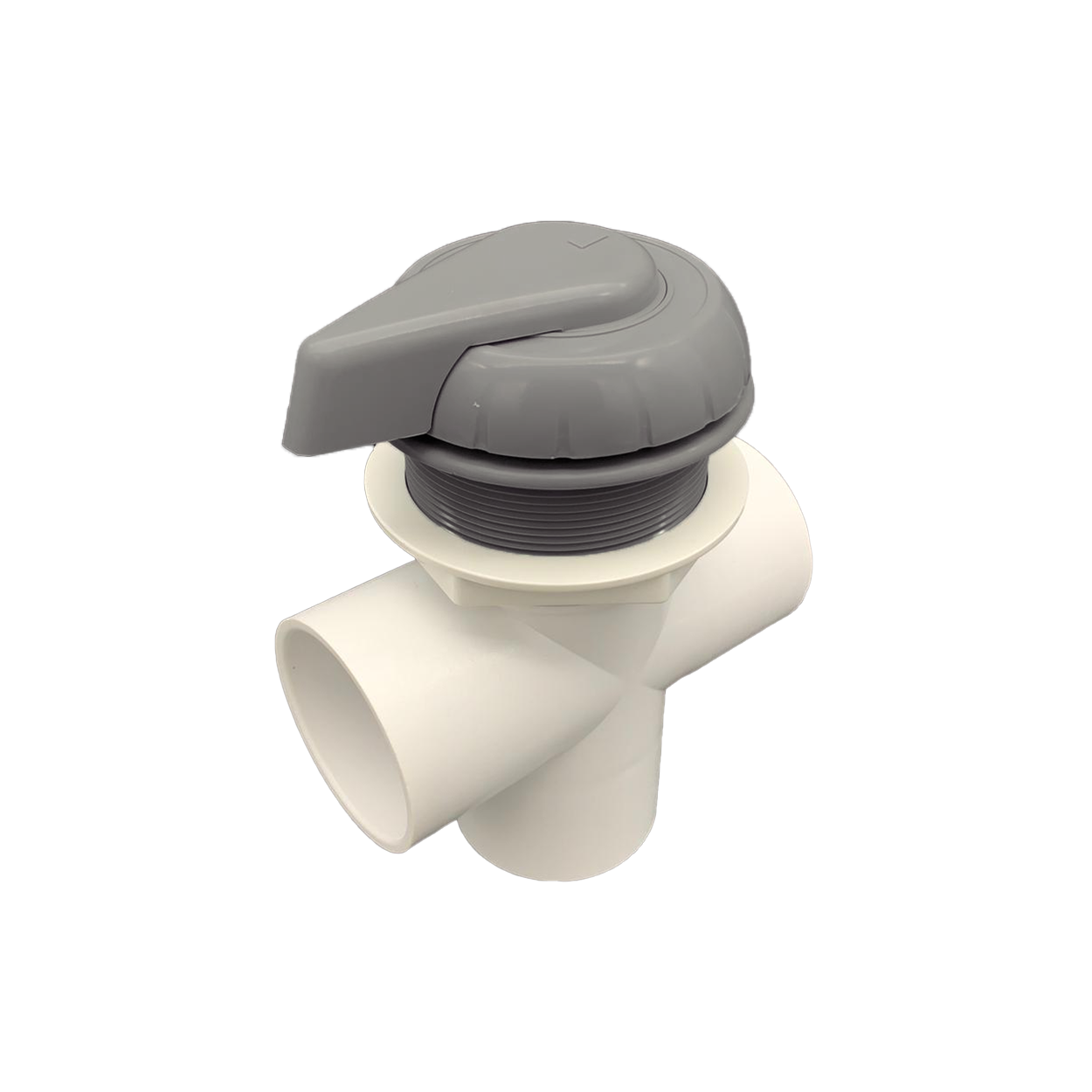

Balboa/Hydroair 50mm 3 Way Diverter Valve Grey.

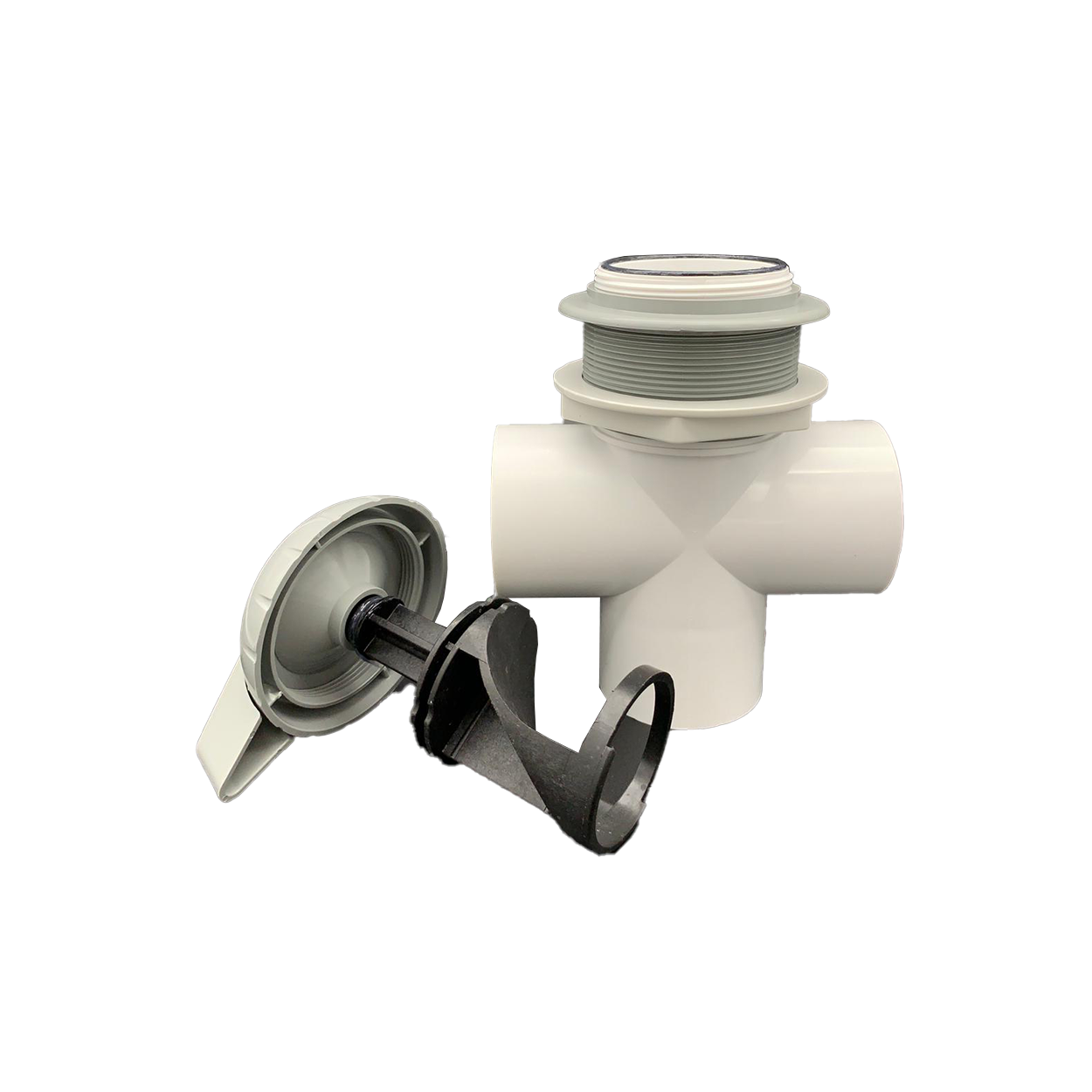

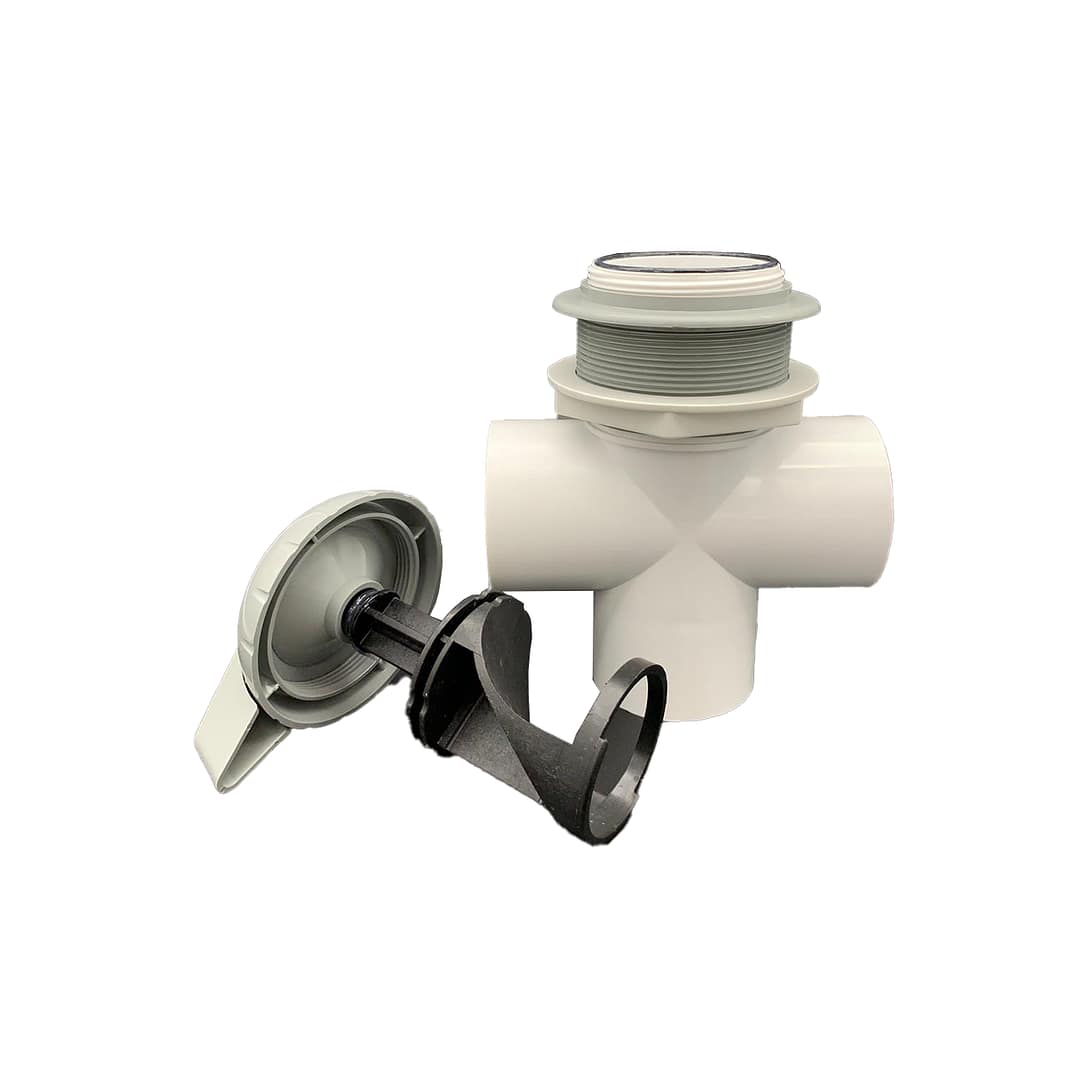

Comes complete with Body, Flange, Locking Ring, Diverter Gate and O’ring’s, Cap and O’ring, and Handle.
Commonly used on Monarch and Old Signature Spas.
Also available in White and Charcoal.
Specifications
Dimensions
Required Hole Size – 80mm
Diverter Body –
Height: 175mm
Diameter: 72mm
Ports/Outlets: 3 x 50mm(2″) Water
Diverter Gate –
Height: 130mm
Shaft Top: 11mm square
Cap Diameter – 95mm
Warranty
3 months for manufacturing or material defects only
*Refer to manufacturers T&C’s
