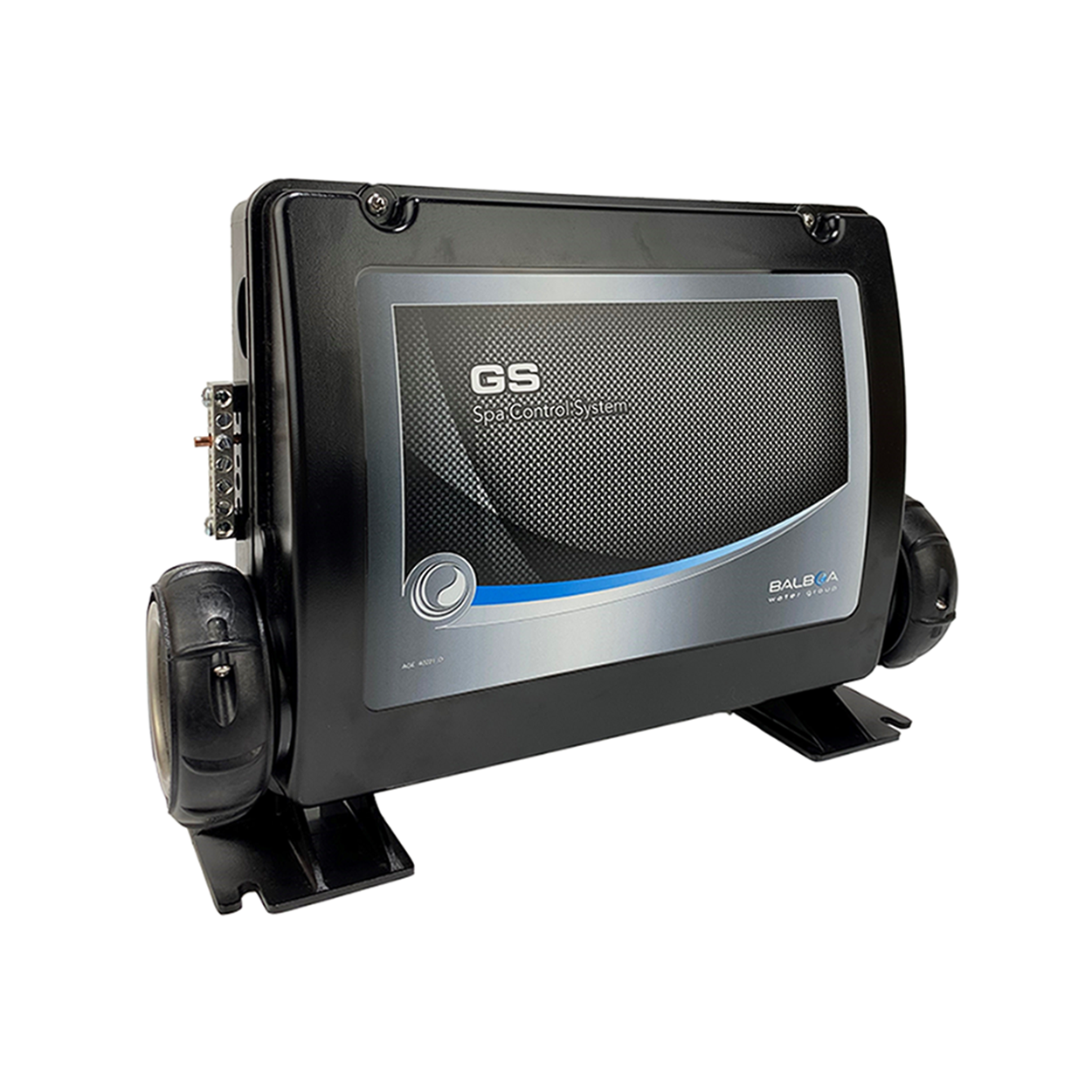

Balboa GS523DZ Controller Only
SKU : B-54763
In stock
Description
Balboa GS523DZ Controller.
Touchpad sold separately.
GS523DZ 240volt Output Sockets
CPUMP: Circulation Pump
PUMP 1: 1Spd Pump or 2Spd Pump(If 1Spd must have a Circ pump)
PUMP 2: 1spd Pump
PUMP 3: 1spd Pump
BLOWER: Blower
AV: This outlet has a constant 240volts and is not switchable (can be used to power any other item requiring a constant 240volts)
O3/UV: This outlet is only to be used with an ozone system
GS523DZ Low Voltage
2 x Touchpad Outlet
1 x Light
GS523DZ Features
*In heater temp sensor
*Max Temp 40 degrees
*Adjustable Filtration
*Programmable Load Shedding
Specifications
Controller Specifications.
Heater Wattage: 3000w
Max Current: 32amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions
Length: 382mm
Height: 275mm
Width: 110mm
Weight: 3.8kg
Warranty:
Comes with a 1 year warranty(Return to base)
*Refer to manufacturers T&C’s.
