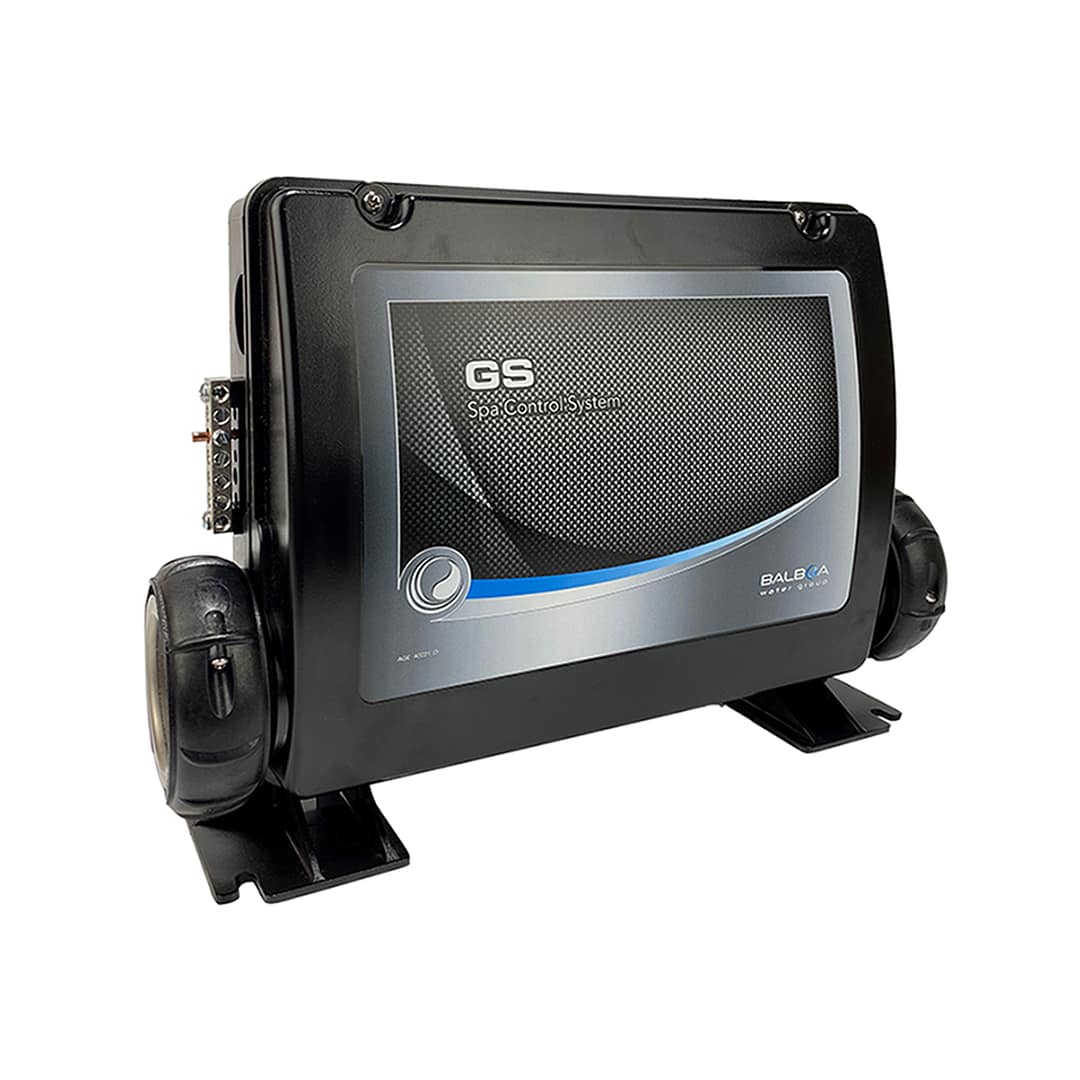

Balboa GS501Z 3.0KW (Titanium) Controller
SKU : B-55471
Description
Balboa GS501Z 3.0KW (Titanium) Controller
240volt Output Sockets:
CPUMP: Circulation Pump (Must be used if Pump 1 is a single speed pump)
PUMP 1: Either a Single Speed Pump(Must use Circulation pump) or a Two Speed Pump
BLOWER: Blower
240V: This outlet has a constant 240volts and is not switchable
O3/UV: This outlet is only to be used with an ozone system
Low Voltage Outlets:
2 x Touchpad Outlets
1 x Light
Features:
*In heater temp sensors
*Max Temp 40 degrees
*Adjustable Filtration
*Sleep & Economy Mode
*Programmable Load Shedding
*IR Receiver
Touchpad sold separately.
Specifications
Controller Specifications.
Heater Wattage: 3000w (Titanium)
Max Current: 32amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions
Length: 382mm
Height: 275mm
Width: 110mm
Weight: 3.8kg
Warranty:
Comes with a 1 year warranty (Return to base)
*Refer to manufacturers T&C’s.
