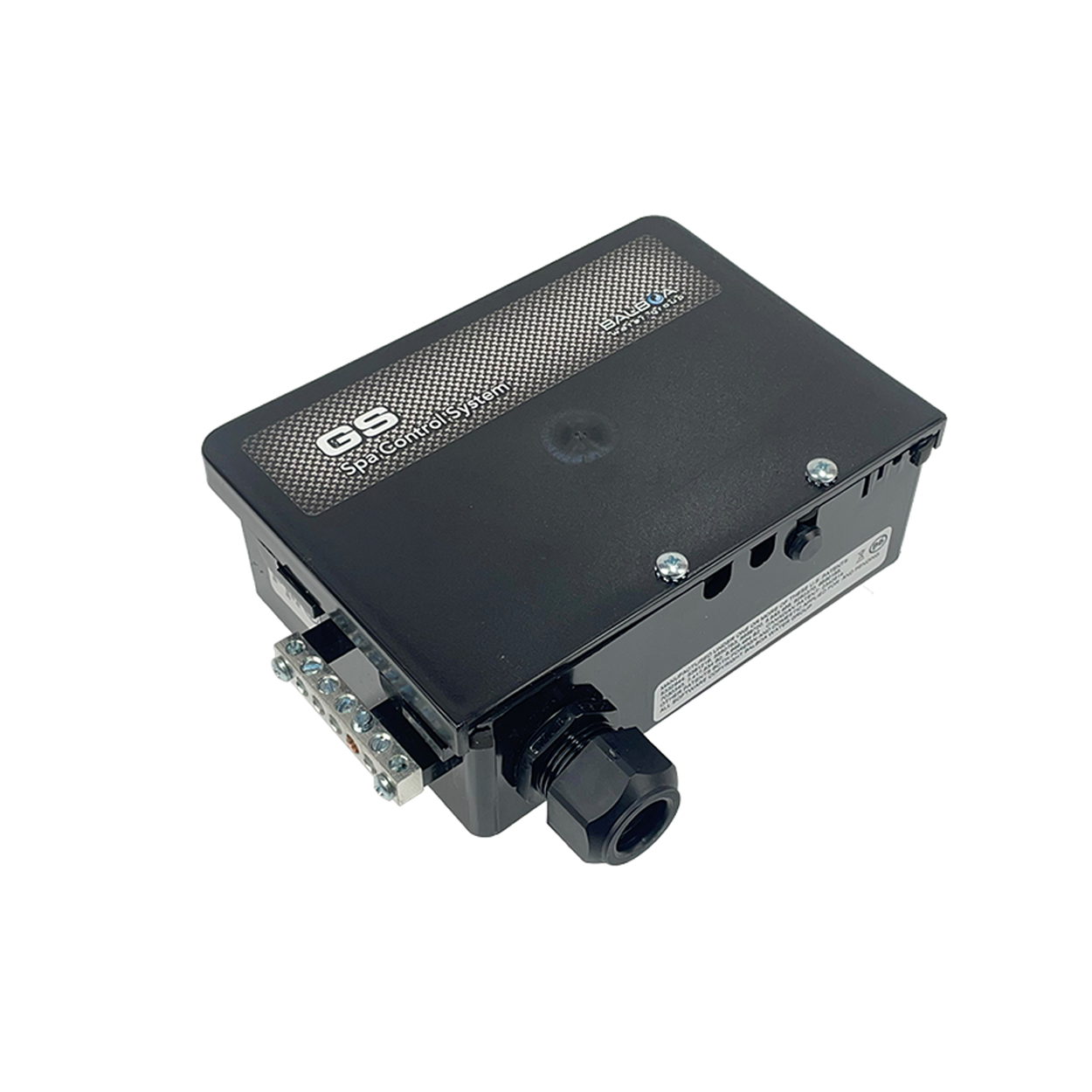

Balboa GS100 Controller Unit
SKU : B-56300
In stock
Description
Balboa GS100 Controller.
Touchpad and Heater Sold Separately.
GS100 240volt Output Sockets
PUMP 1: 2Spd Pump Only
O3/UV: This outlet is only to be used with an ozone system
GS100 Low Voltage
1 x Touchpad Outlet
1 x Light(Spanet SV Light Only)
GS100 Features
*In heater temp sensors
*Max Temp 40 degrees
*Adjustable Filtration
*Sleep & Economy Mode
*Programmable Load Shedding.
Specifications
Controller Specifications.
Heater Wattage: 2000w & 3000w
Max Current: 16amp
Power Lead: N/A
Power Lead Length: N/A
Heater Unions: 50mm or 40mm
Controller Dimensions
Length: 210mm
Height: 190mm
Width: 60mm
Weight: 2.0kg
Warranty:
Comes with a 1 year warranty (Return to base).
*Refer to manufacturers T&C’s.
