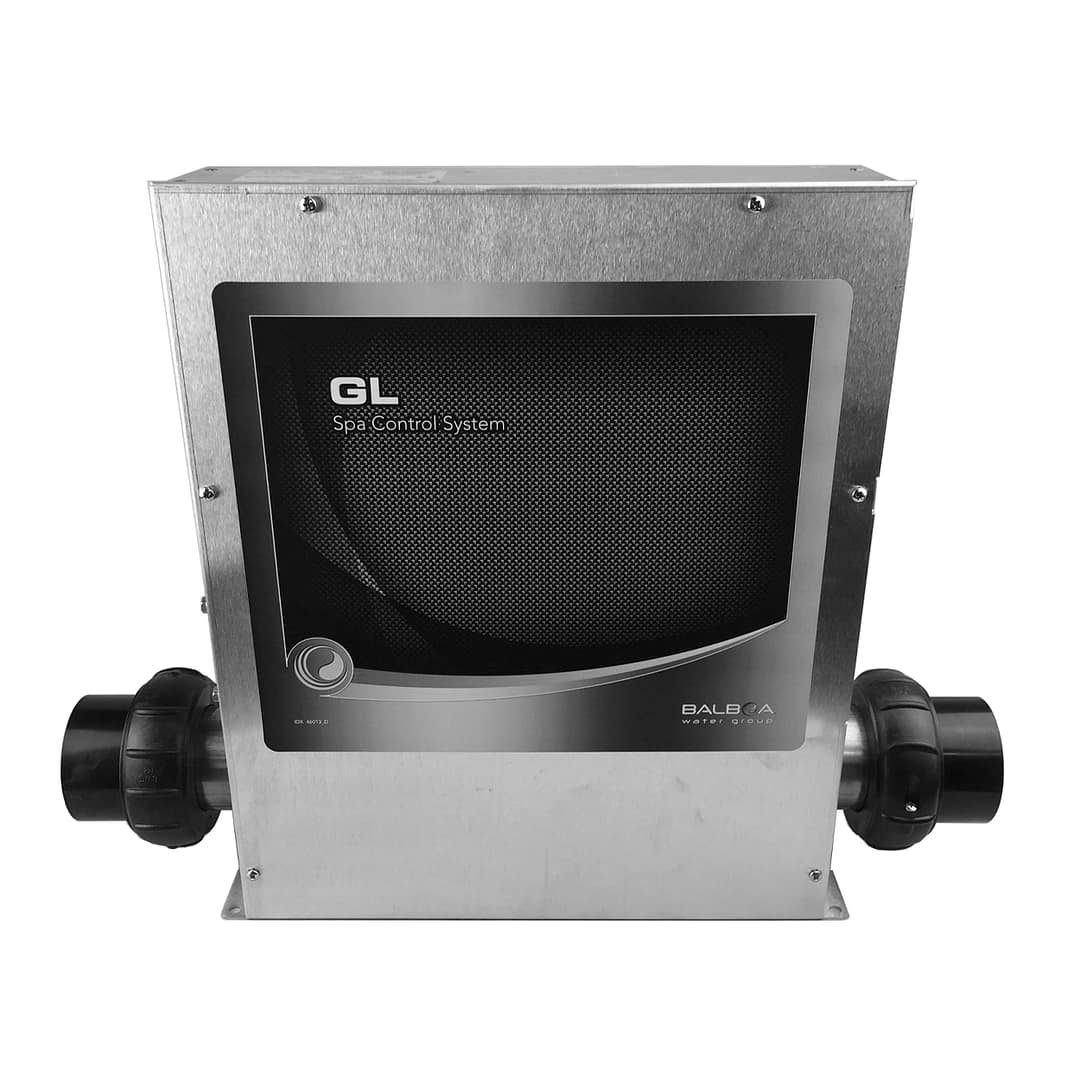

Balboa GL8000 Controller 3.0kw
SKU : B-53859
Description
Discontinued by Supplier
Balboa GL8000M3 Controller
Touchpad sold separately
GL8000M3 240volt Output Sockets
CPUMP: Circulation Pump (Must be used if Pump 1 1Spd)
PUMP 1: 1Spd Pump or 2Spd Pump
PUMP 2: 1Spd Pump or 2Spd Pump
PUMP 3: 1Spd Pump or 2Spd Pump
PUMP 4: 1Spd
PUMP 5: 1Spd
PUMP 6: 1Spd
BLOWER: Blower
230V: This outlet has a constant 230volts and is not switchable (can be used to power a heat pump or any other item requiring a constant 230volts)
O3/UV: This outlet is only to be used with an ozone system
GL8000M3 Low Voltage
4 x Touchpad Outlet
1 x Light
4x AUX Touchpad Outlet
1 x IR Receiver (Used for remote control)
GL8000M3 Features
*In heater temp sensors
*Max Temp 40 degrees
*Adjustable Filtration
*Programmable Load Shedding
Specifications
Controller Specifications
Heater Wattage: 3000w
Max Current: 32amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions
Length: 382mm
Height: 311mm
Width: 90mm
Weight: 5kg
Warranty:
Comes with a 1 year warranty(Return to base)
*Refer to manufacturers T&C’s.
