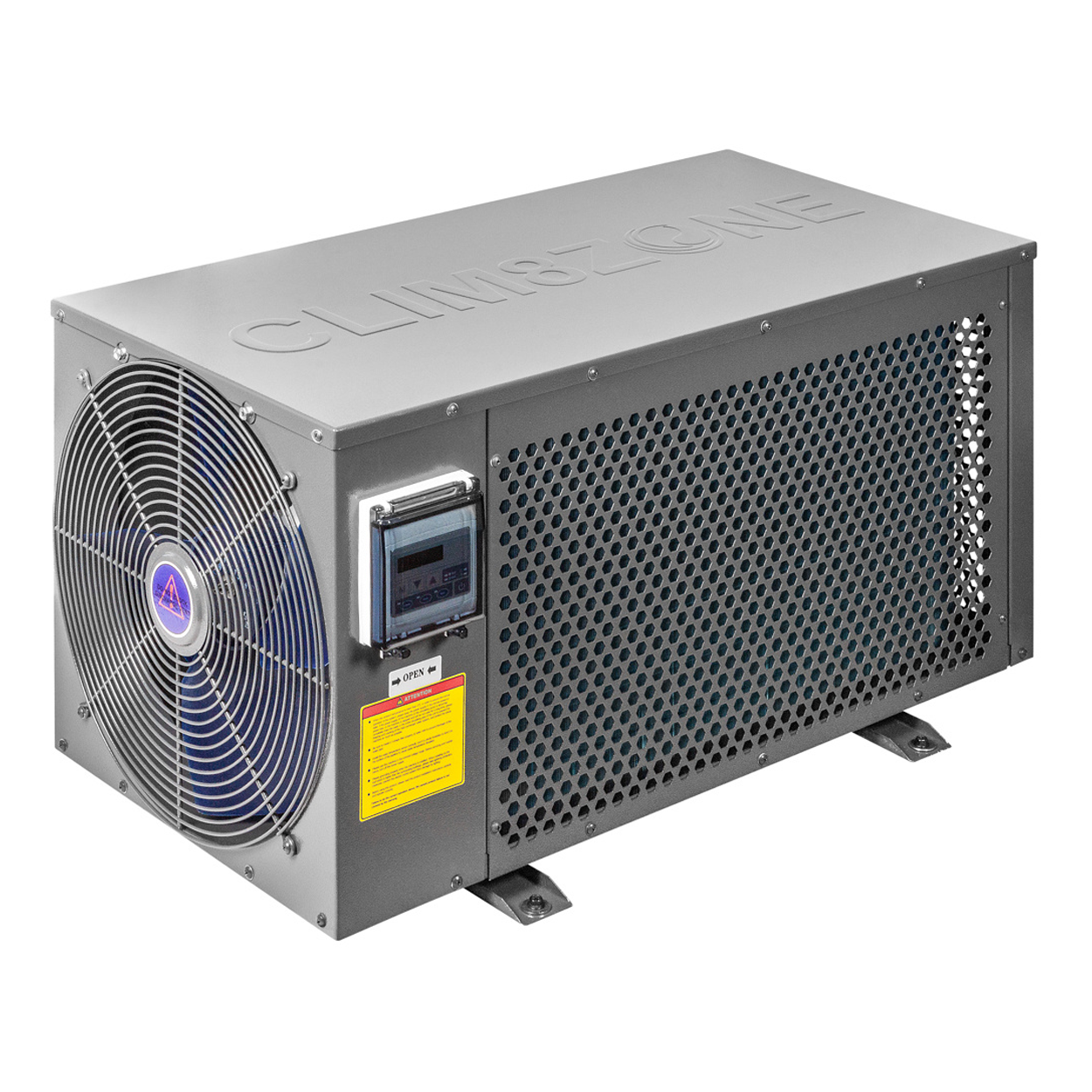

This Balboa brand heat pump combines energy efficient technology with an efficient and cost effective way to heat or cool the spa water leaving you free to enjoy the benefits of your whirlpool.

The heat pump offers you a 75% savings on your energy consumption compared to a conventional heater. It offers you the possibility to choose between 3 modes:

Automatic intelligent mode : the pump automatically adjusts the frequency of the compressor using an artificial intelligence system based on the ambient air temperature, water temperature and other factors.
Manual high mode : The pump provides the highest heating capacity and the fastest water heating.
Manual low mode : the pump provides slower and lower heating capacity.

Installation guide:

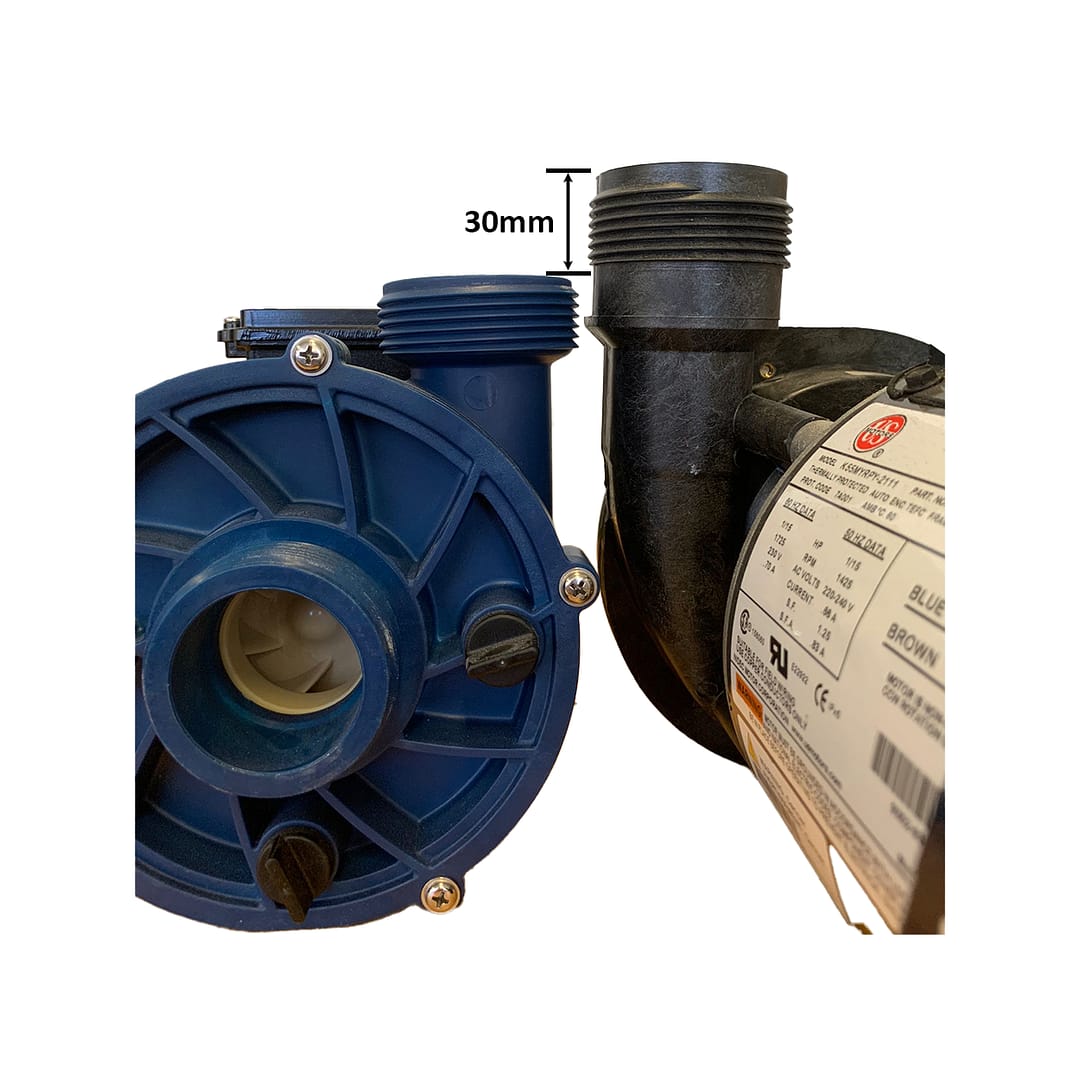

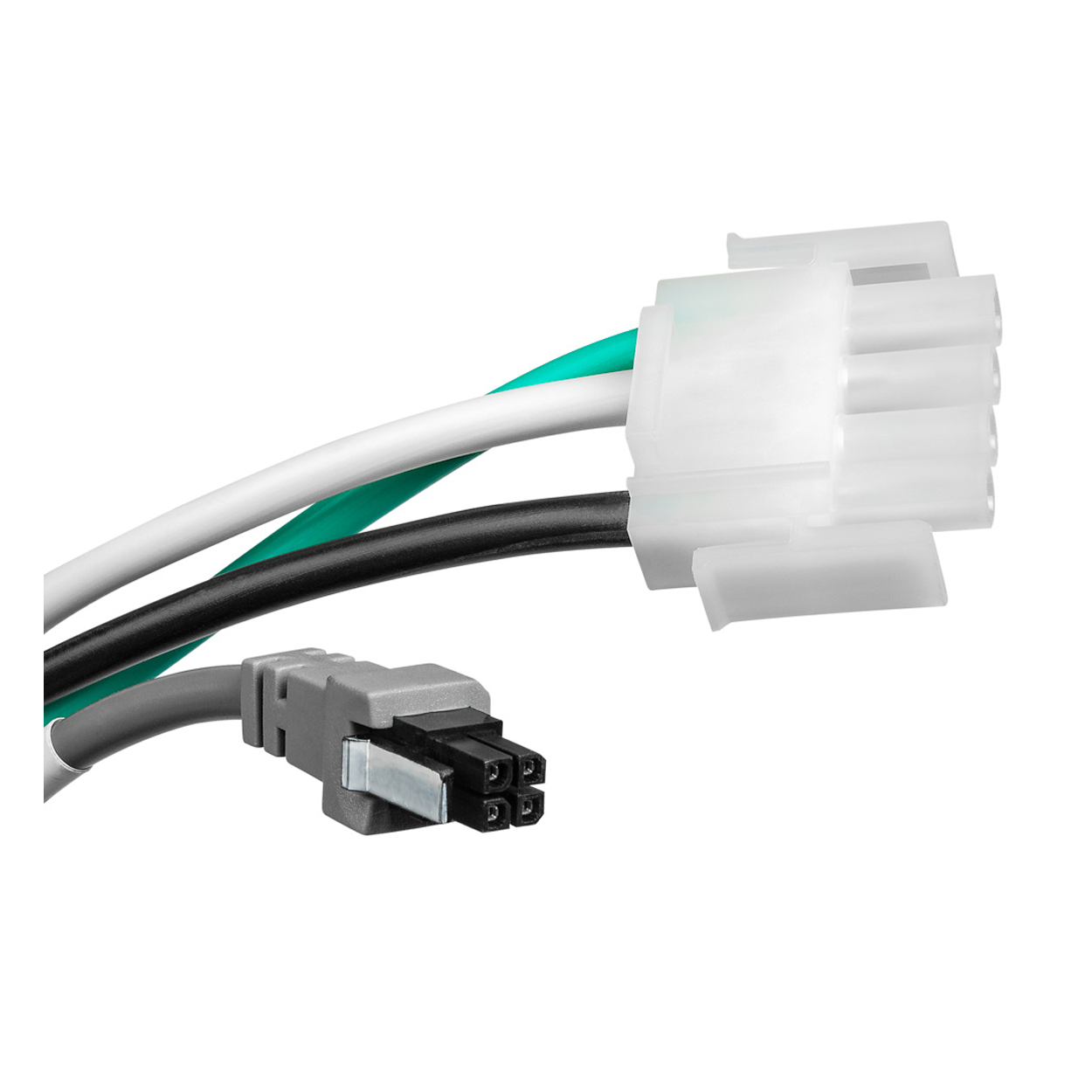

The heat pump is delivered with 50mm fittings and seals. Furthermore, it is delivered pre-wired with a 4-pin AMP plug and molex plug to be connected directly to the BP control system (length 4 meters).

Compatible with the following controller models that have C8Z at the end of the model number:
BP6013G1
BP6013G2
BP6013G3
BP2100G0
BP2100G1
BP214PBC

Compatible with the following touchpads:
TP700
SpaTouch Mini
SpaTouch 2
SpaTouch 3
SpaTouch 3+
SpaTouch 4
