Balboa BP26P3BC Controller
SKU : B-55976
In stock
Description

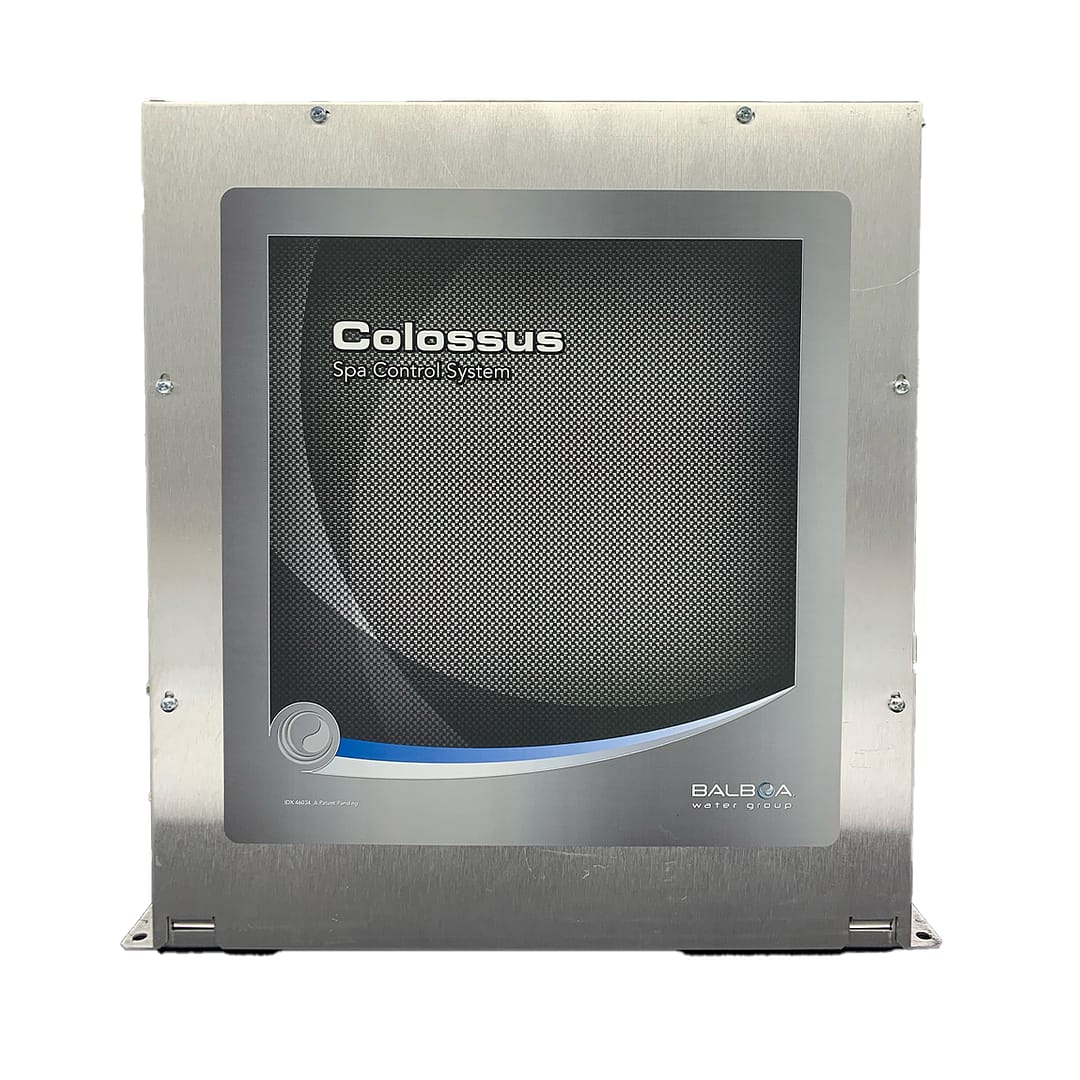

Balboa BP26P3BC (Colossus) Controller
Touchpad sold separately.
BP26P3BC 240volt Output Sockets
CPUMP: Circulation Pump (Must be used if Pump 1 1Spd)
PUMP 1: 1Spd Pump or 2Spd Pump
PUMP 2: 1Spd Pump or 2Spd Pump
PUMP 3: 1Spd Pump or 2Spd Pump
BLOWER: Blower
240V: This outlet has a constant 240volts and is not switchable
O3/UV: This outlet is only to be used with an ozone system
BP26P3BC Low Voltage
3 x Touchpad Outlets
4x AUX touchpad Outlets
1 x Light
1x IR Receiver
BP26P3BC Features
*In heater temp sensors
*Max Temp 40 degrees
*Adjustable Filtration
*Sleep & Economy Mode
*Programmable Load Shedding
*IR Receiver
Specifications
Controller Specifications
Heater Wattage: 3000w
Max Current: 32amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions
Length: 382mm
Height: 311mm
Width: 90mm
Weight: 5kg
Warranty
Comes with a 1 year warranty(Return to base)
*Refer to manufacturers T&C’s.
