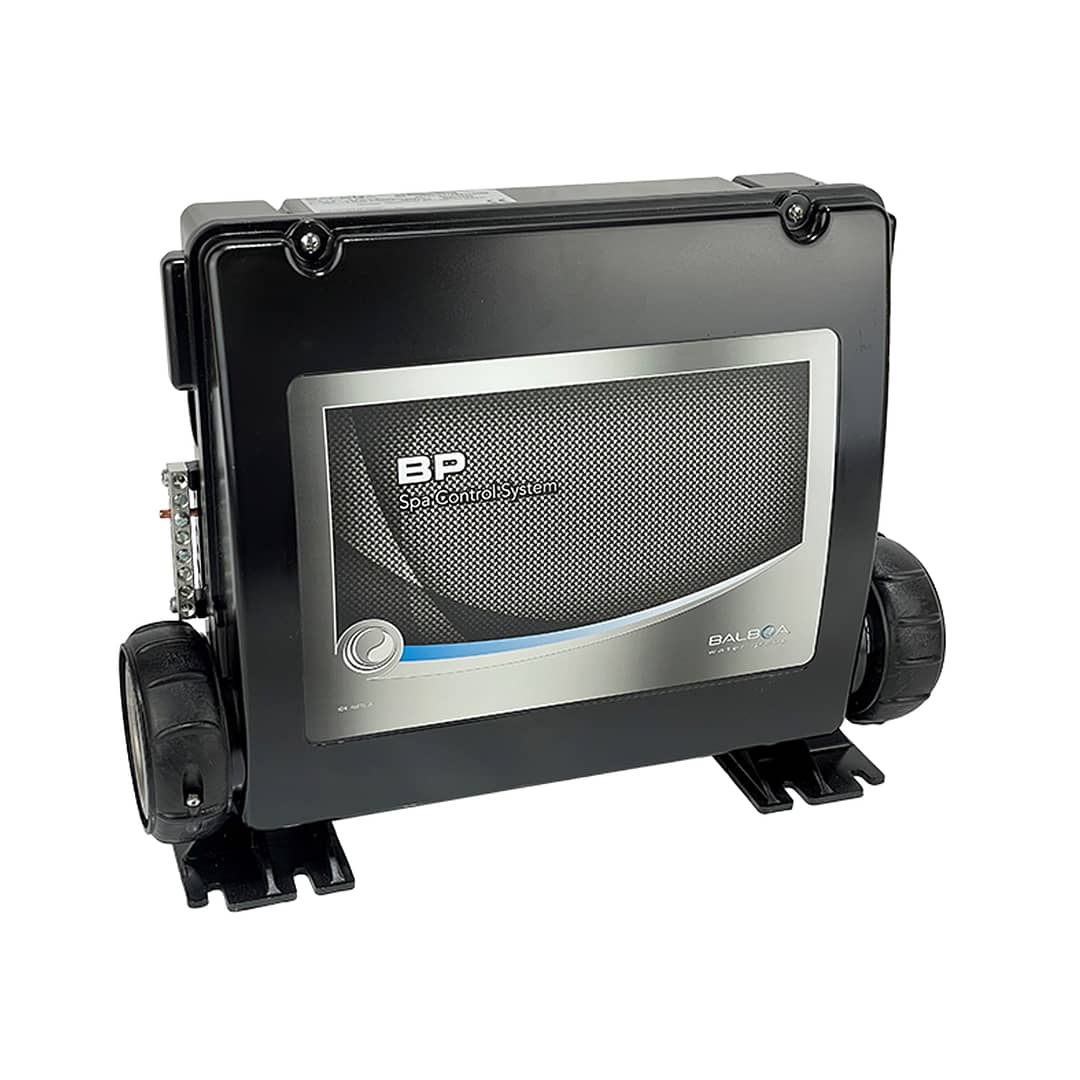

Balboa BP2100G0 Controller 3.0kw
SKU : B-56662
In stock
Description
Balboa BP2100G0 Controller.
Touchpad sold separately.
BP2100G0 240volt Output Sockets
CPUMP: Circ pump (must have a circ pump if pump 1 single speed)
PUMP 1: 1Spd Pump or 2Spd Pump
PUMP 2: 1Spd Pump or 2Spd Pump
PUMP 3: 1Spd Pump
BLOWER: Blower
240V: This outlet has a constant 240volts and is not switchable
O3/UV: This outlet is only to be used with an ozone system
BP2100G0 Low Voltage

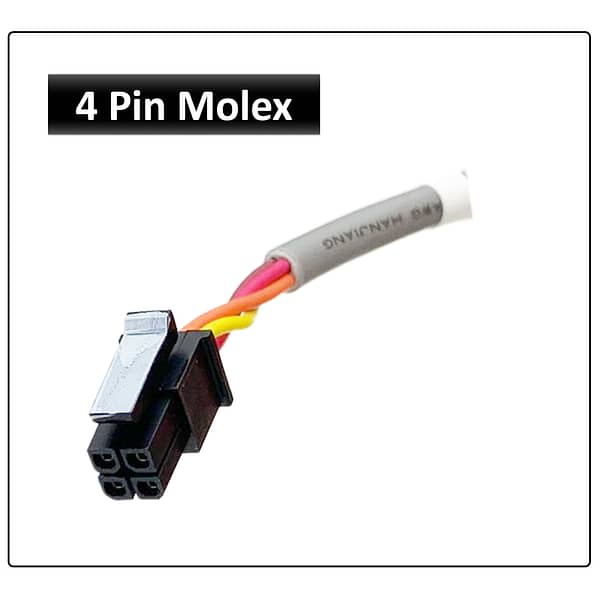

2 x Touchpad Outlets
1 x AUX Outlet
1 x Light
1 x Wifi Port
BP2100G0 Features
*In heater temp sensors
*Max Temp 40 degrees
*Adjustable Filtration
*Heater Modes (Ready & Rest)
*Wifi Interface
*Programmable Load Shedding
Specifications
Controller Specifications
Heater Wattage: 3000w
Max Current: 32amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions
Length: 382mm
Height: 300mm
Width: 110mm
Weight: 3.8kg
Warranty:
Comes with a 1 year warranty (Return to base)
*Refer to manufacturers T&C’s.
