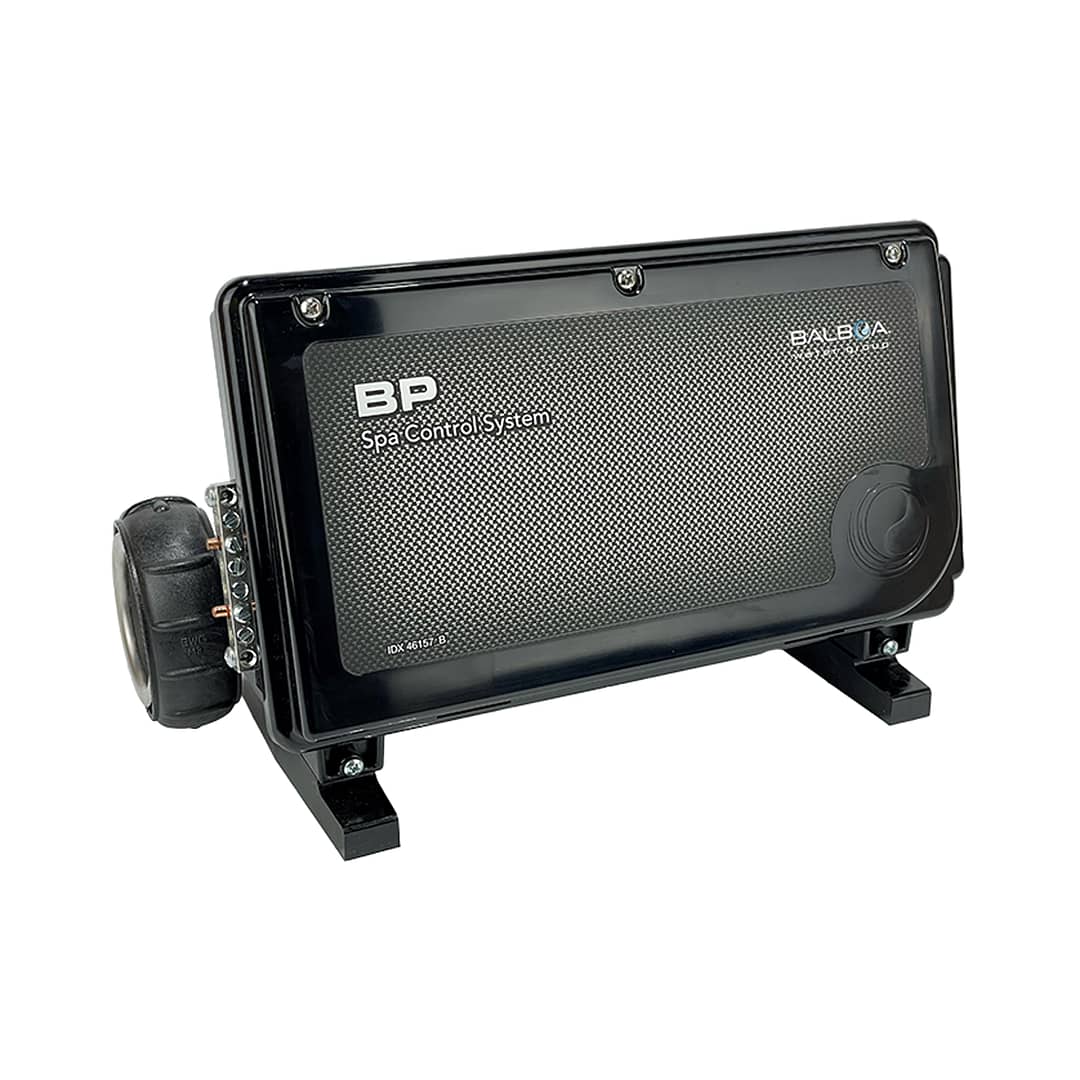

Balboa BP200G2 Controller 2.0kw c/w Pump PCB
SKU : B-59287
In stock
Description
Balboa BP200G2 2.0kw Controller.

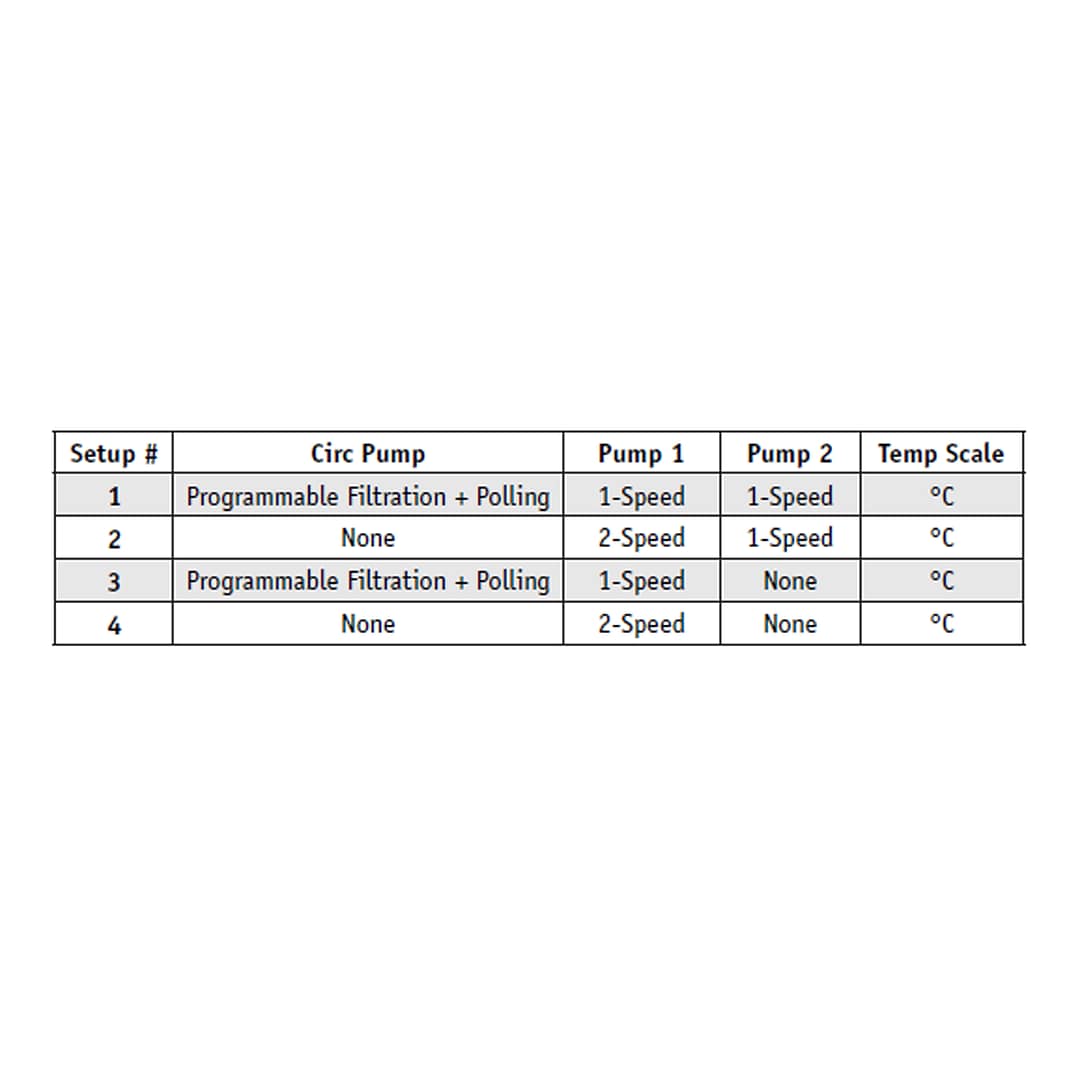

This controller has the ability to run the following:
OPTION 1 – 1 x Circ Pump and 2 x 1sp Pumps
OPTION 2 – 1 x 2sp Pump and/or 1 x 1sp Pump
It also has the following outlets
* 240V: Constant 240volt that is not switchable
* O3/UV: This outlet is only to be used with an ozone system
* 2 x Touchpad Outlets
* Light (12v) Outlet
* Wifi Outlet
BP200G2 Features
*In heater temp sensors
*Max Temp 40 degrees
*Adjustable Filtration
*Heater Modes (Ready & Rest)
*Wifi Interface
*Programmable Load Shedding
NOTE: Touchpad sold separately
Specifications
Controller Specifications
Heater Wattage: 2000w
Max Current: 16amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions
Length: 382mm
Height: 225mm
Width: 160mm
Weight: 3.8kg
Warranty:
Comes with a 2 year warranty (Return to base)
*Refer to manufacturers T&C’s.
Support & Downloads
Please click the support button to find products, software, manuals, knowledge articles, how-to-videos, error codes and more at our support hub.
