Balboa 1.25HP Hot Spa Bath Pump

SKU : B-23910100

Part Identification and Replacement Recommendation

Fast Delivery Australia & New Zealand Wide

24-48hr dispatching on in stock items

Free On-Site Over the phone help

Description

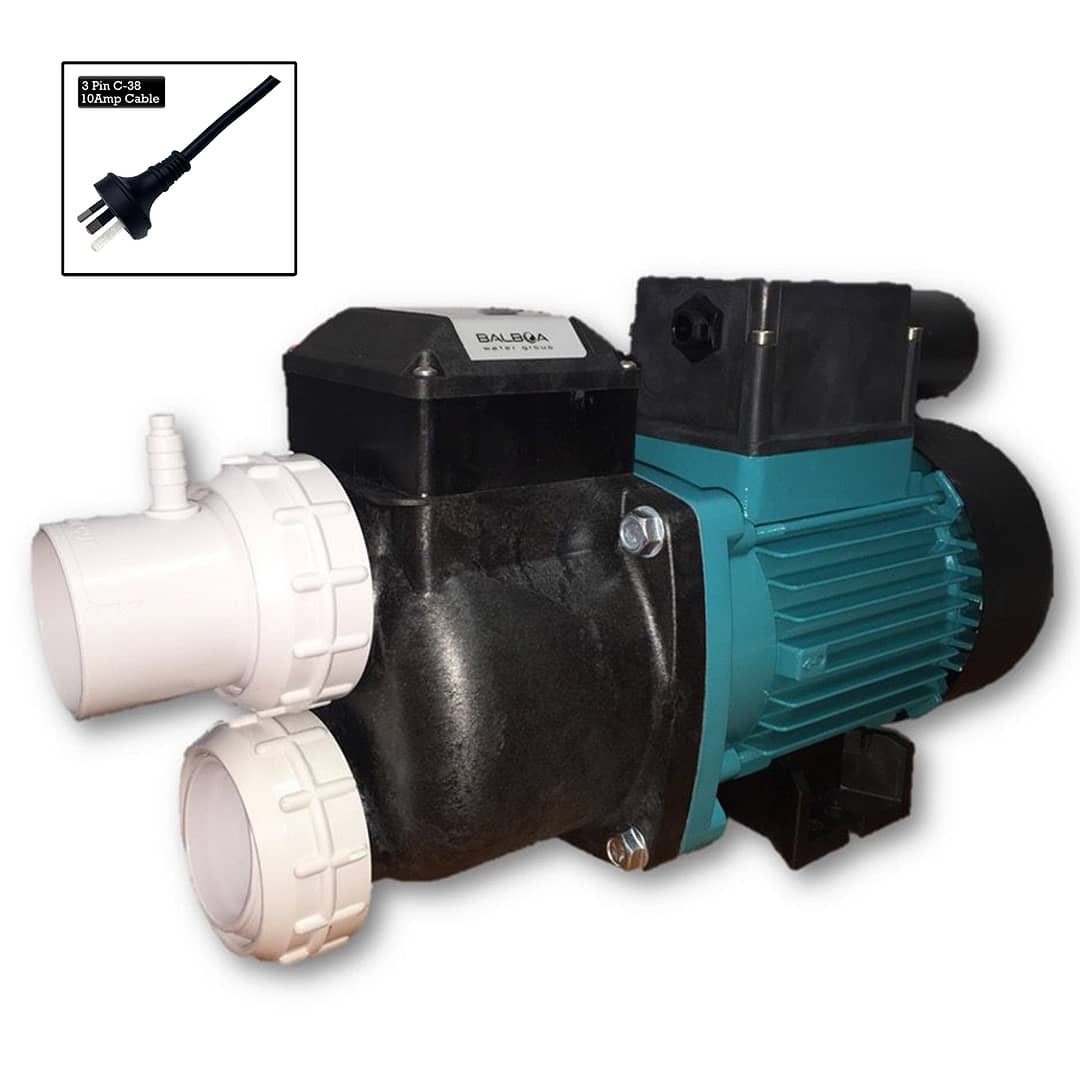

Balboa 1.25HP Hot Spa Bath Pump

Part No. B-23910100

Suited to installations containing 5-7 jets.

Unit has built in air switch and 1.3kW heater element. An air button (purchased separately) is required to operate this unit.

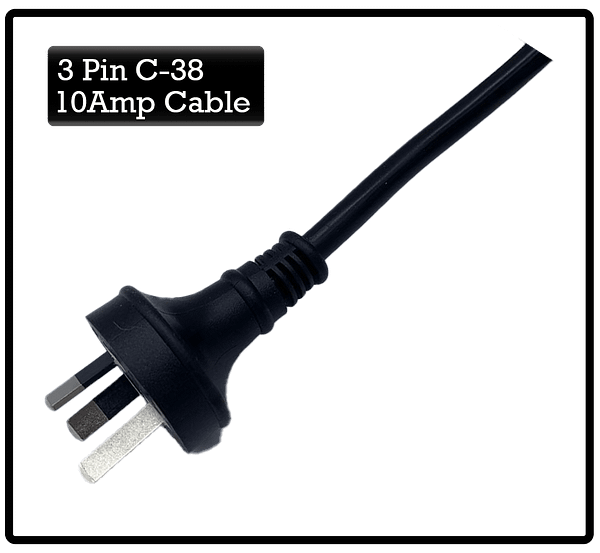

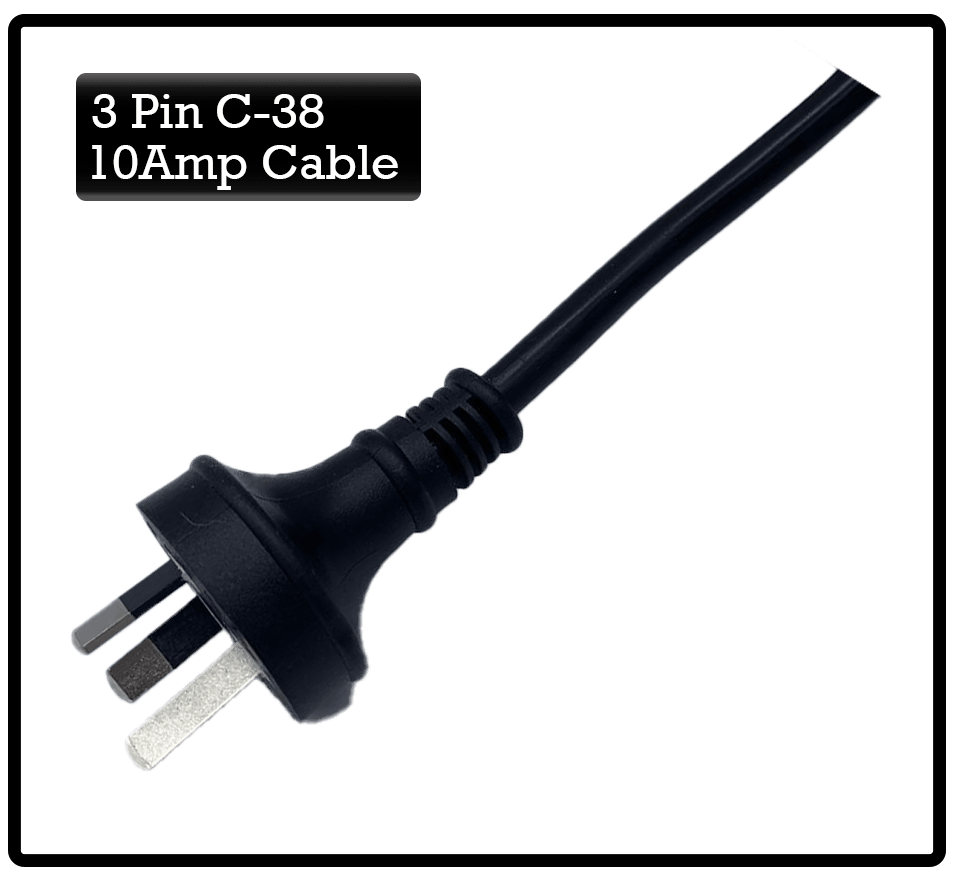

Comes with 40mm unions and 2m lead with C38 plug.

Electrical Specifications

Speed: Single
Voltage: 220-240V
Motor Current: 4.3A
Heater Current: 5.6A
Total Unit Current: 9.9A
Horsepower: 1.25

Heater Input: 1.3kw
RPM: 2800

Dimensions

Length: 368mm
Width: 145mm
Height: 222mm
Weight: 8.8kg

Operating Limits

Max Water Temp: 70°
Max Ambient Temp: 55°
Noise Level: 65db

Warranty

12mths Limited

Retrofits Onga Bath Pumps.

Also available in 1hp (Part No. B-23810100)
