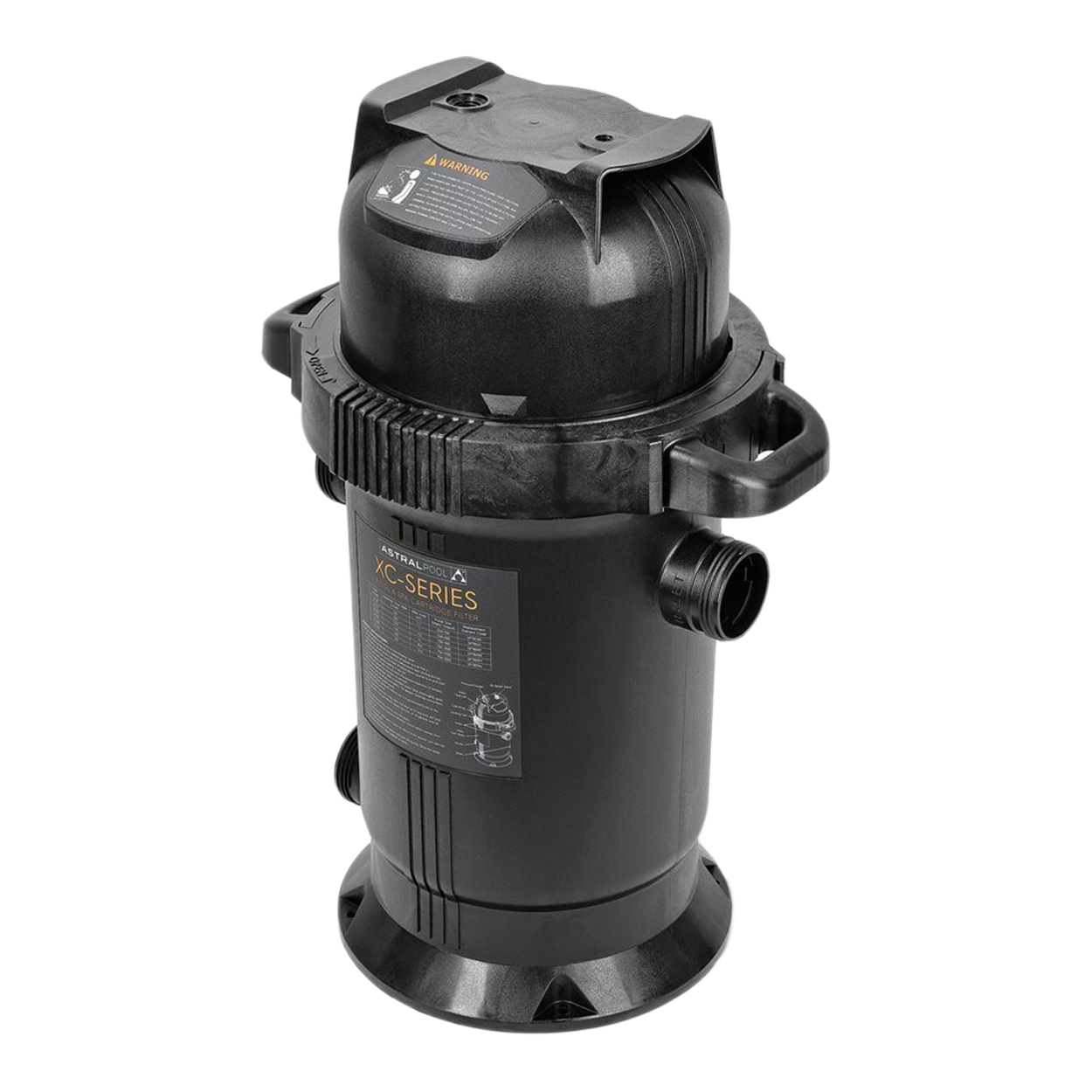

Astral XC 100 Cartridge Filter Assembly
SKU : AP-30042
In stock
Description
Astral XC100 Cartridge Filter Complete.
Comes with 40/50mm unions.
The XC filters comes with a patented cyclonic water filtration technology to improve the filter element life and reduce overall pressure on the complete system through its unique way of separating contaminants in the water.
* Improved flow rates and lower pressure drops through the filter system
* Easy maintenance
* Quality components for long life
* No Backwash required, leading to increased water savings
* Australian designed and manufactured
Specifications
Filter Specifications
Filter Area: 100 sqft (9.4m2)
Flow Rate: 375 lpm
Max Pressure: 250 kpa
Filter Housing Dimensions
Length: 385mm
Width: 500mm
Height: 800mm
Weight: 14.4kg
Replacement Cartridge Element
FC-FAA510(78097)
Warranty
5 Years
1 Year only on Filter Element, O’rings and Gasket Seals
